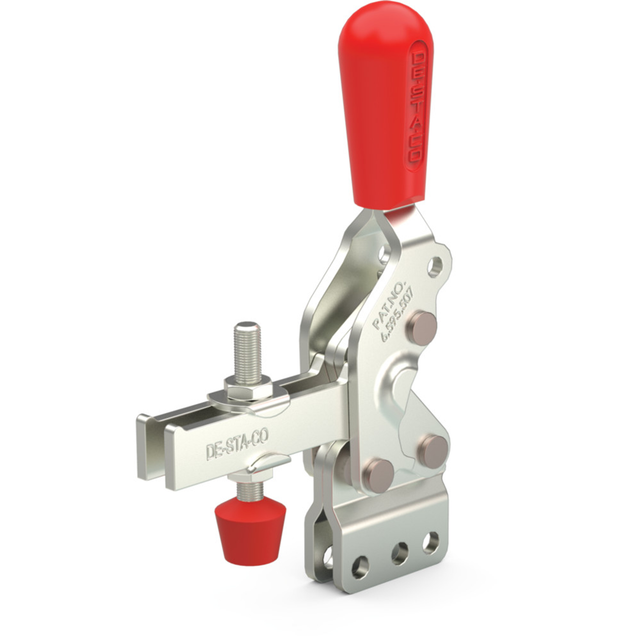

Destaco 2002-UB Toggle Locking Clamp
,

Destaco 2002-UB Vertical Hold-Down Toggle Locking Clamp

SKU: 2002-UB

$27.95

In stock

The Destaco 2002-UB Toggle Locking Clamp offers 600 lbf of vertical clamping force with a straight base, ergonomic handle, and hardened bushings—ideal for assembly, woodworking, and fixture-checking in compact industrial setups.

Availability: 1 in stock

Qty

The Destaco 2002-UB Toggle Locking Clamp is a vertical hold-down clamp designed for high-capacity clamping in compact setups. Its straight base and U-bar arm offer flexible mounting and secure spindle placement for repeatable performance.

This clamp delivers up to 600 lbf of holding force and features hardened bushings at key pivot points for extended service life. The ergonomic red handle provides large hand clearance, reducing pinch points and improving operator safety. With near-vertical clamping contact, it’s ideal for assembly, woodworking, and fixture-checking applications.

Part of Destaco’s new generation of clamps, the 2002-UB offers three times the capacity of legacy models and is compatible with accessories like the 215208-M spindle (sold separately). Its bolt pattern matches the 202 Series, making it easy to integrate into existing setups.

Quick Product Highlights

  • Vertical hold-down clamp with U-bar arm
  • Straight base for flexible mounting
  • 600 lbf maximum holding capacity
  • Large hand clearance for safer operation
  • Hardened bushings for long-term durability

Request a quote for Destaco 2002-UB Toggle Locking Clamp at Kinequip today!

Handle

Vertical

Duty Cycle

2

Weight (lb)

0.49

Product Type

Standard

Product Series

2002/2007

Clamp Arm Style

U-Bar

Flanged Washers

215105

DistributorGroup

Workholding (Manual, Power and Hydraulic Clamps)

Product Function

Clamping

Spindle Assembly

215208-M

Toggle Lock Plus

No

Standard Material

Steel

Base Mounting Style

Straight

Service Environment

Normal

Application - Welding

Fair/Medium

Clamp Arm Length (in)

1.93

Application - Assembly

Excellent/High

Application - Closures

Excellent/High

Handle Opening (+10°)

66

Application - Machining

Poor/Low

Application - Wood-Working

Excellent/High

Height Under Clamp Arm (in)

1.28

Application - Food Processing

Not Recommended

Maximum Holding Capacity (lbf)

600

Accomodates Workpiece Variation

No

Application - Checking Fixtures

Excellent/High

Clamp Bar Opening (+10°) (degrees)

75

Data Sheet
