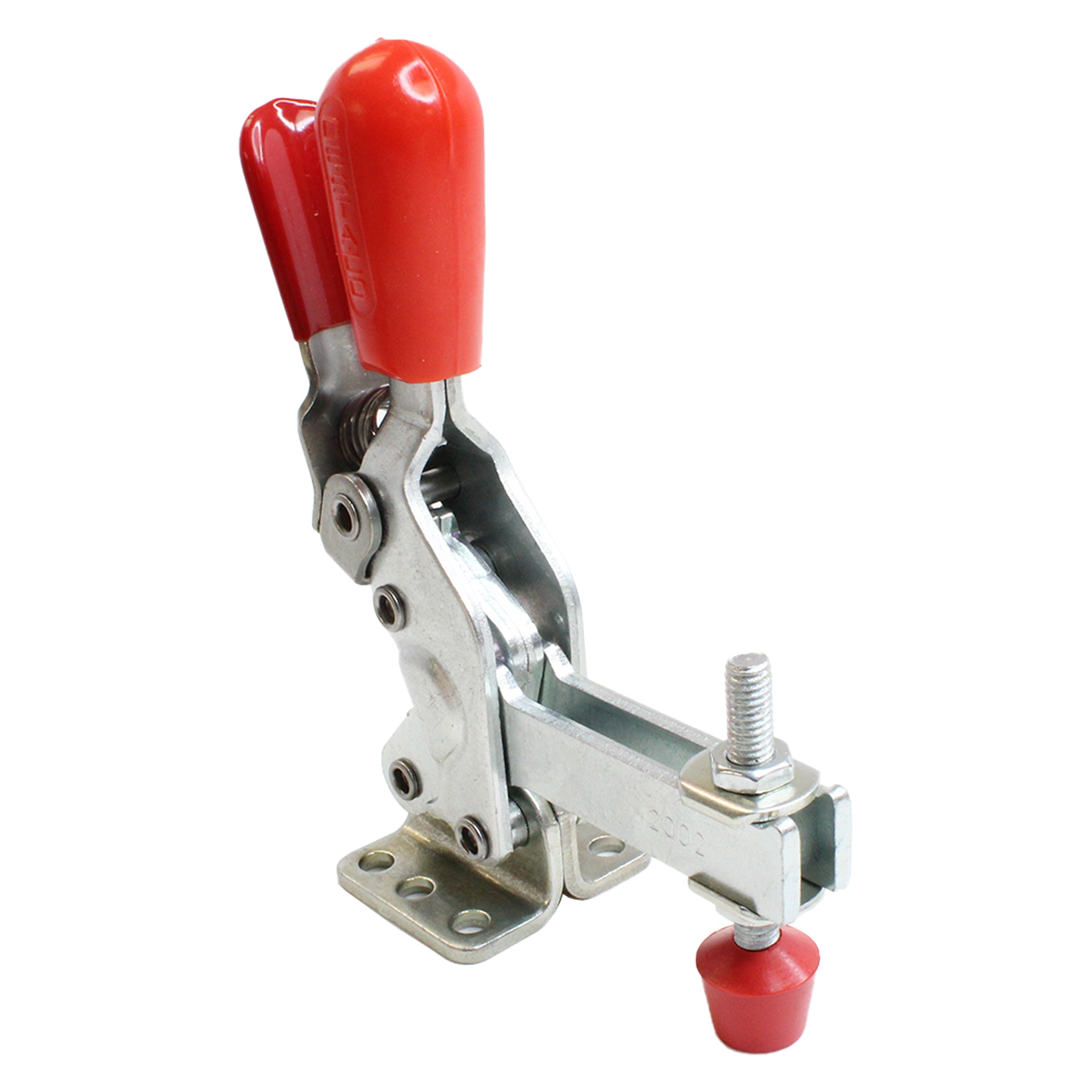

The Destaco 2002-UR Toggle Locking Clamp is a vertical hold-down clamp designed for secure, repeatable clamping in industrial setups. Featuring a flanged base and U-bar arm, this model includes Destaco’s Toggle Lock Plus mechanism, which prevents accidental release and enhances safety under vibration or stress.
With a maximum holding capacity of 600 lbf, the 2002-UR offers three times the strength of legacy models. Its clamp arm measures 1.93 inches with 0.95 inches of clearance underneath, and the vertical red handle opens to 66°, while the clamp arm opens to 75°, providing ample clearance for part loading. The compact 4.27-inch overall length and 0.49 lb weight make it ideal for tight setups.
This clamp is compatible with the 215208-M spindle assembly (not included) and is recommended for assembly, woodworking, checking fixtures, and closure applications. It is not recommended for food processing and performs moderately in welding environments.
Quick Product Highlights
- 600 lbf maximum holding capacity
- Toggle Lock Plus for added safety
- Flanged base with U-bar clamp arm
- Vertical handle with 66° opening
- Compatible with 215208-M spindle
