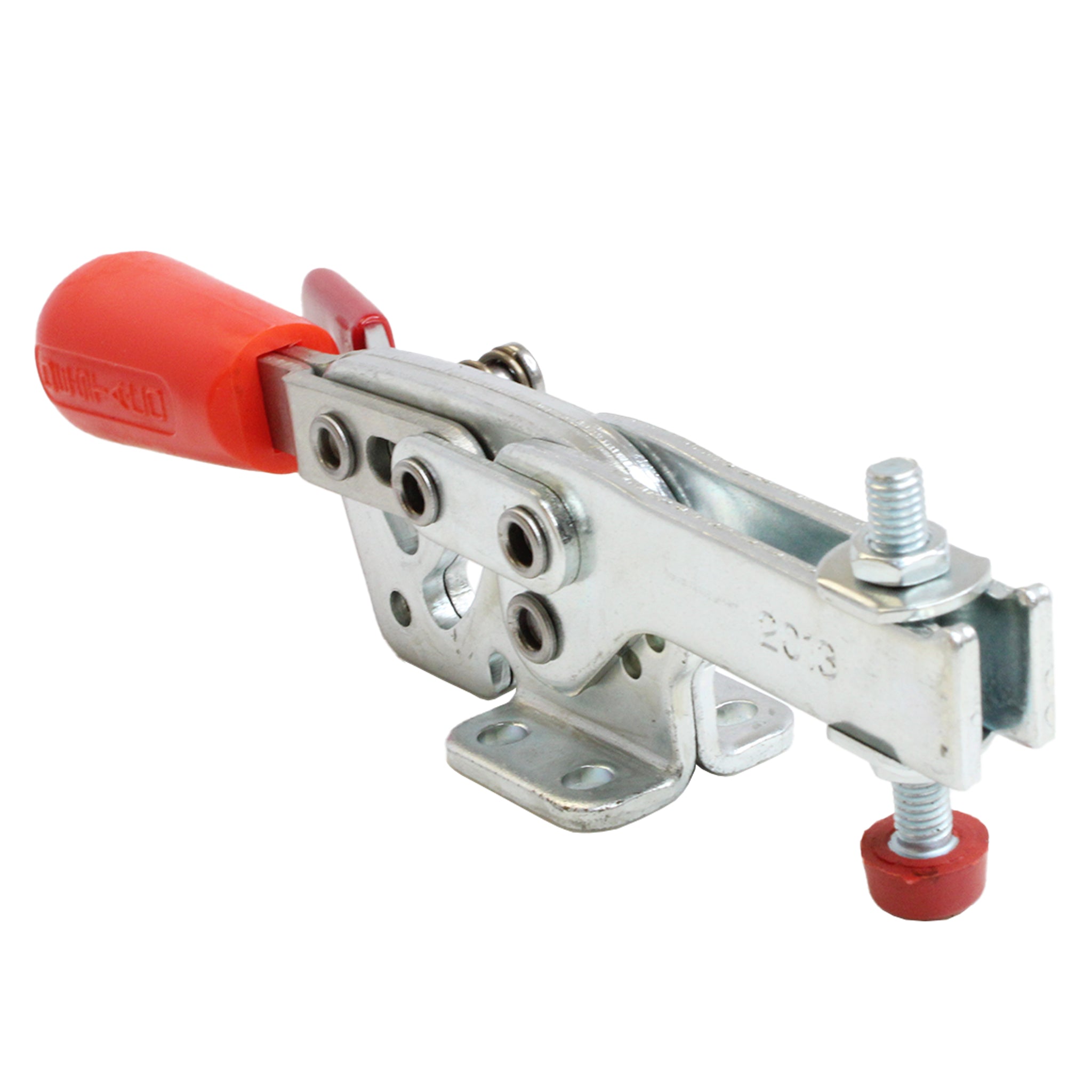

2013-UR Horizontal Hold-Down Toggle Locking Clamp
Increased handle clearance reduces pinch points.
Longer clamp arm
Spindle contacts workpiece vertically
Part No.: 2013-UR
Series: 2013
Maximum Holding Capacity (N) 1,310
Maximum Holding Capacity (lbsf) 295
Clamp Arm Length (mm) 41.9
Clamp Arm Length (in) 1.650
Height Under Clamp Arm (mm) 19.1
Height Under Clamp Arm (in) 0.750
Clamp Bar Opening (+10°) (degrees) 71
Handle Opening (+10°) 58
Available Yes
Standard Material Steel
Toggle Lock Plus Yes
Accommodates Workpiece Variation No
Base Mounting Style Flange
Clamp Arm Style U-Bar
Handle Horizontal
Service Environment Normal
Duty Cycle 2
Product Type Standard
Weight (kg) 0.17
Weight (lb) 0.37
Application: Welding Fair/Medium, Assembly Excellent/High, Checking Fixtures Excellent/High, Machining Poor/Low, Wood-Working Excellent/High, Closures Excellent/High, Food Processing Not Recommended
