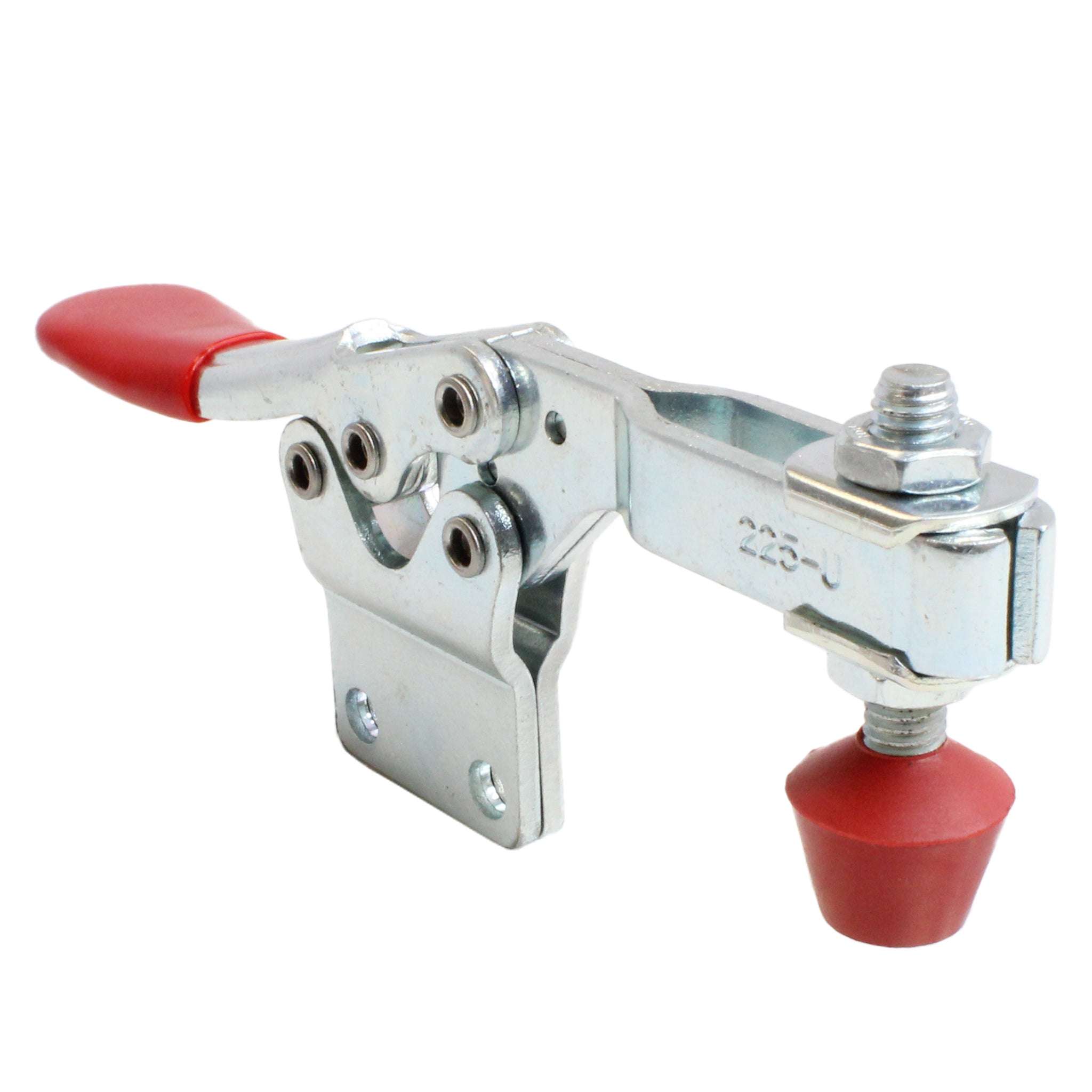

225-UB Horizontal Hold-Down Toggle Locking Clamp
Model no.: 225-UB
Maximum Holding Capacity (N): 2,220
Maximum Holding Capacity (lbsf): 500
Clamp Arm Length (mm): 68.3
Clamp Arm Length (in): 2.690
Height Under Clamp Arm (mm): 39.6
Height Under Clamp Arm (in): 1.560
Clamp Bar Opening (+10°) (degrees): 92
Handle Opening (+10°): 70
Available: Upon Request
Standard Material: Steel
Toggle Lock Plus: No
Accomodates Workpiece Variation: No
Base Mounting Style: Straight
Clamp Arm Style: U-Bar
Handle: Horizonal
Service Environment: Normal
Duty Cycle: 2
Product Type: Standard
Holding Force: 2200: N
Angle: 90°
Standard Equipment: 225208-M
Weight (kg): 0.25 (0.55 lb)
Additional Features:
Clamp supplied with neoprene spindle
Low profile.
Application: Welding: Fair/Medium, Assembly: Excellent/High, Checking Fixtures: Excellent/High, Machining: Poor/Low, Wood-Working: Excellent/High, Closures: Excellent/High, Food Processing: Fair/Medium
