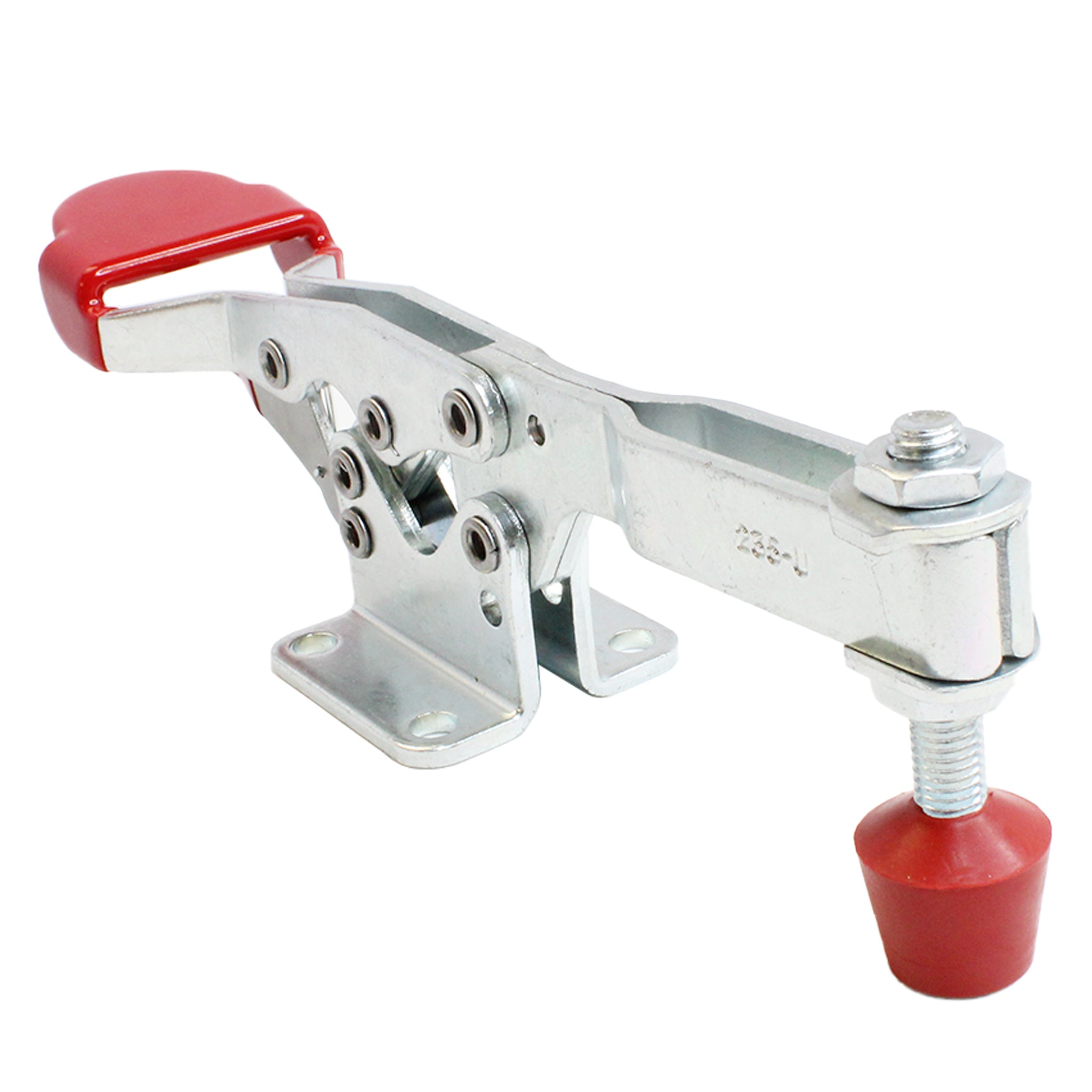

The Destaco 235-UR Toggle Locking Clamp is a horizontal hold-down clamp designed for secure, low-profile clamping in industrial environments. Its flanged base and U-bar arm provide stable mounting and flexible spindle positioning.
With a maximum holding capacity of 750 lbf, this clamp is ideal for assembly, fixture checking, woodworking, and closure applications. The horizontal handle offers improved hand clearance and ergonomic operation, while the Toggle Lock Plus® mechanism adds safety by preventing accidental release during use.
The 235-UR features a 4.16-inch clamp arm and 1.7-inch clearance beneath the arm, making it suitable for medium-duty tasks. It does not include a spindle assembly but is compatible with accessories like the 240208-M spindle. Its compact design and rugged construction make it a reliable choice for repetitive clamping tasks in standard environments.
Quick Product Highlights
- Horizontal hold-down clamp with U-bar arm
- Toggle Lock Plus® safety mechanism
- 750 lbf maximum holding capacity
- Flanged base for secure mounting
- Low-profile design for tight setups
Get your Destaco 235-UR Toggle Locking Clamp at Kinequip today.
