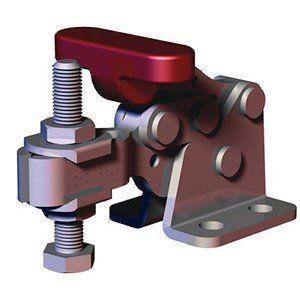

The Destaco 305-USS Toggle Locking Clamp is a compact horizontal hold-down clamp made from stainless steel for corrosion resistance in demanding environments. Designed with a flanged base and U-bar arm, this clamp is ideal for assembly, checking fixtures, closures, and light-duty food processing applications.
It features a low-profile design with a horizontal red handle that can be operated from either side or behind, making it suitable for confined workspaces. The clamp delivers up to 150 lbf of holding capacity and includes a 1.2-inch arm length with 0.48 inches of clearance underneath. The 305-USS is compatible with spindle assembly 201943 (not included) and supports accessories like 305908-M and 102911.
This model is part of Destaco’s stainless steel clamp series and is built for normal service environments where compact, reliable clamping is required.
Quick Product Highlights
- 150 lbf maximum holding capacity
- Stainless steel construction for corrosion resistance
- Flanged base with U-bar clamp arm
- Horizontal handle for flexible operation
- Compact design for tight spaces
