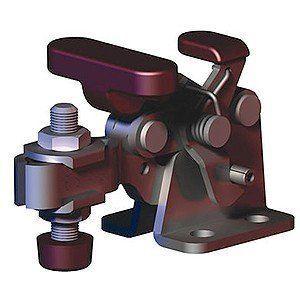

Destaco 309-UR Horizontal Locking Clamp

Destaco 309-UR Horizontal Hold-Down Toggle Locking Clamp

SKU: 309-UR

$98.37

The Destaco 309-UR offers 750 lbf holding capacity, a compact steel body, and Toggle Lock Plus™ safety. Ideal for tight spaces, it’s perfect for assembly, woodworking, and light industrial applications.

Qty

The Destaco 309-UR Horizontal Locking Clamp is a compact, low-profile toggle clamp designed for reliable hold-down action in tight spaces. Built from durable steel, it features a flanged base and U-bar arm for flexible mounting and spindle adjustment.

This model includes Destaco’s Toggle Lock Plus™ system, offering a secondary locking mechanism for added safety during repetitive clamping tasks. With a holding capacity of up to 750 lbf, the 309-UR is ideal for assembly, woodworking, welding, and light machining applications. Its horizontal handle can be operated from either side or behind, making it especially useful in confined setups.

Whether you’re securing fixtures, closures, or workpieces, this clamp delivers consistent performance with ergonomic control and rugged construction.

Quick Product Highlights

  • Steel body with flanged base
  • U-bar arm for adjustable spindle placement
  • Toggle Lock Plusâ„¢ for added safety
  • 750 lbf maximum holding capacity
  • Low-profile design for tight spaces

Get your Destaco 309-UR Horizontal Locking Clamp at Kinequip today.

Handle

Horizonal

Duty Cycle

2

Weight (lb)

2.87

Product Type

Compact

Product Series

305/307/309

Clamp Arm Style

U-Bar

Flanged Washers

235106

DistributorGroup

Workholding (Manual, Power and Hydraulic Clamps)

Product Function

Clamping

Spindle Assembly

309208

Toggle Lock Plus

Yes

Standard Material

Steel

Base Mounting Style

Flange

Service Environment

Normal

Application - Welding

Fair/Medium

Clamp Arm Length (in)

2.68

Application - Assembly

Excellent/High

Application - Closures

Excellent/High

Handle Opening (+10°)

168

Application - Machining

Fair/Medium

Application - Wood-Working

Excellent/High

Height Under Clamp Arm (in)

1.31

Application - Food Processing

Fair/Medium

Maximum Holding Capacity (lbf)

750

Accomodates Workpiece Variation

No

Application - Checking Fixtures

Fair/Medium

Clamp Bar Opening (+10°) (degrees)

90

Data Sheet
