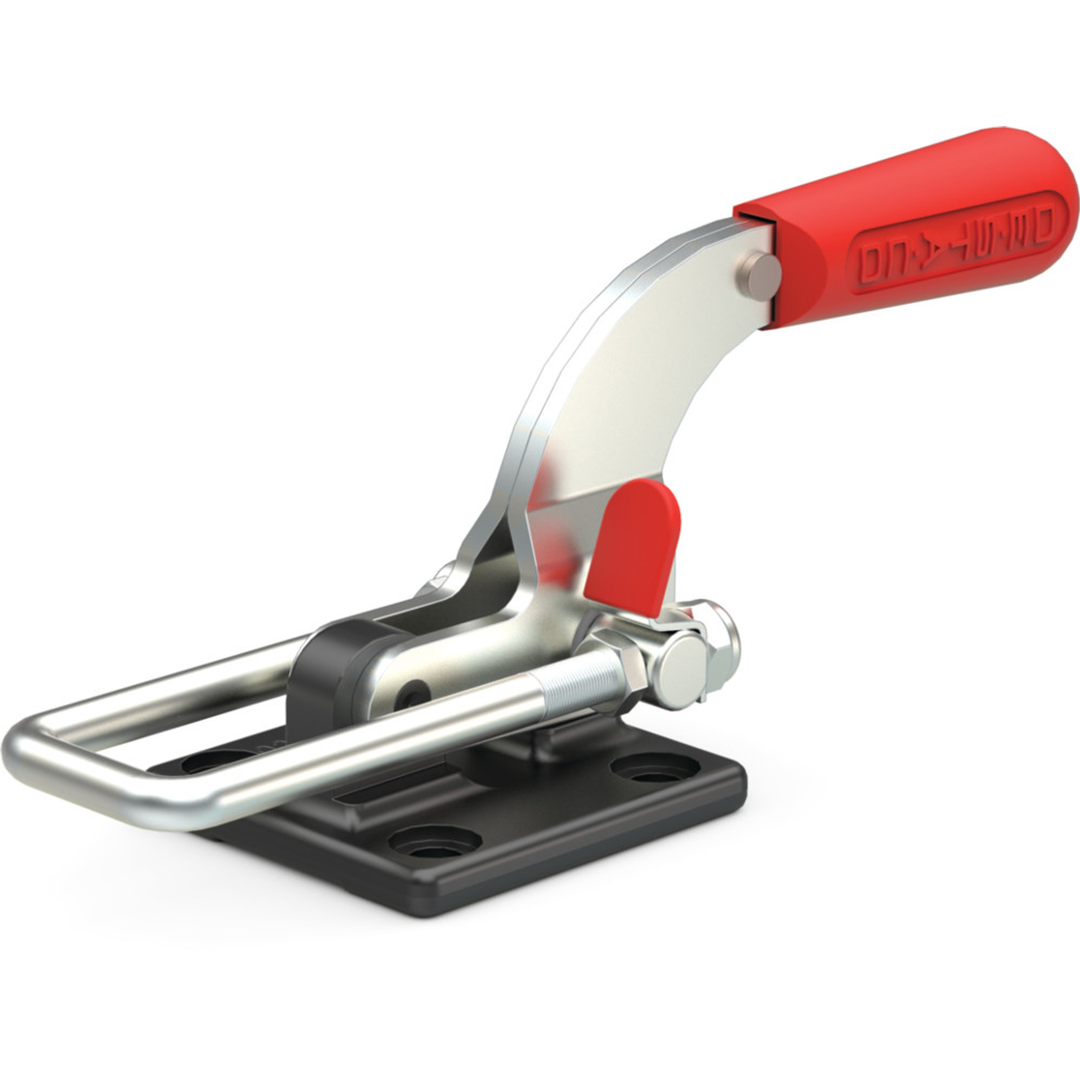

The Destaco 375-B Latch Clamp is a heavy-duty pull action clamp designed for secure latching in industrial applications such as molds, lids, drums, and access covers. With a maximum holding capacity of 4000 lbf, this clamp features a horizontal U-hook and weld-on base for stable mounting. Its threaded U-bolt allows for easy hook adjustment, and the clamp is compatible with optional latch plates and replacement hook assemblies for added flexibility.
The 375-B is built from durable steel and weighs approximately 2.56 lb. It does not include Destaco’s Toggle Lock Plus mechanism, making it a straightforward option for setups that don’t require secondary locking.
The clamp offers 3.47 inches of drawing movement and 0.69 inches of hook adjustment. Optional longer hook lengths are available upon request, and the clamp is compatible with accessories like the 375509 cleat and 385102 latch plate.
Quick Product Highlights
- 4000 lbf maximum holding capacity
- Weld-on base with horizontal U-hook
- Threaded U-bolt for easy adjustment
- Optional latch plates and hook assemblies
- Ideal for molds, lids, drums, and covers
Get your Destaco 375-B Latch Clamp at Kinequip today.
