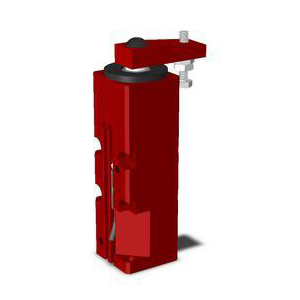

The Destaco 8116 Block Pneumatic Swing Clamp is a compact, air-powered clamping solution designed for automated setups in welding, assembly, and light machining. Its block-style body allows flexible mounting from the top or side, making it ideal for tight or custom layouts.
This model features a left-hand swing direction and delivers 18 lbf of clamping force at 72 psi. With a cylinder bore of 0.75 inches and a total stroke of 0.85 inches (including 0.47 inches during rotation), the 8116 provides smooth, reliable motion. It consumes minimal air (0.002 in³ per double stroke at 7 psi) and is sensor-ready for integration into automated systems. The clamp does not include a spindle and is built for millions of cycles with consistent performance.
Whether you’re working in high-volume production or precision assembly, this pneumatic clamp offers dependable operation with minimal maintenance.
Quick Product Highlights
- Block-style body for top or side mounting
- Left-hand swing direction with 0.85″ stroke
- 18 lbf clamping force at 72 psi
- Sensor-ready for automation setups
- Ideal for welding, assembly, and machining
Get your Destaco 8116 Block Pneumatic Swing Clamp at Kinequip today.
