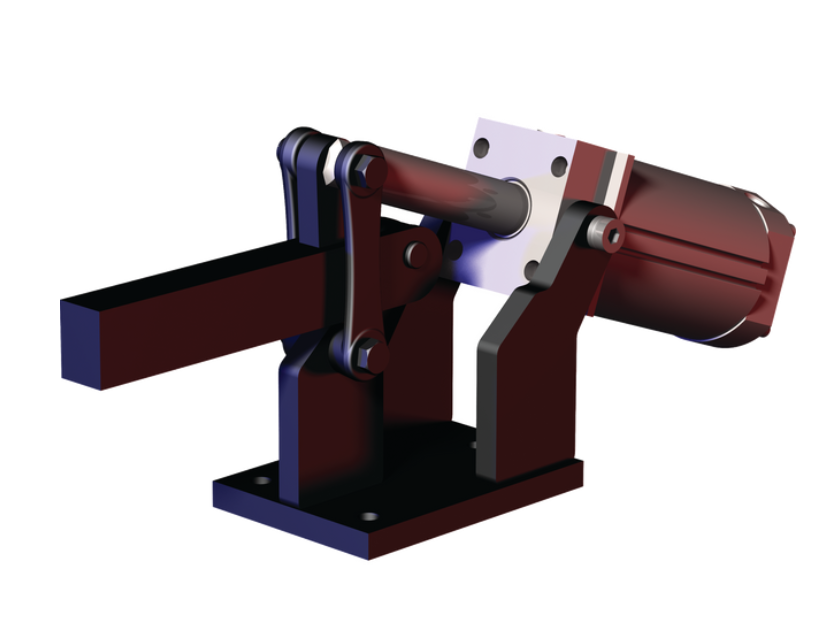

The Destaco 858 Pneumatic Clamp at Kinequip is a high-force, automation-ready toggle clamp designed for demanding industrial applications. As the pneumatic version of Destaco’s manual 558 model, it features a double-acting cylinder with built-in flow control for smooth operation and consistent clamping pressure.
With a maximum holding capacity of 4000 lbf and a 2.48-inch bore, the 858 is built for strength and reliability. Its solid clamping arm is easily modified to suit specific setups, and the unit is sensor-ready for both round and T-slot style sensors. Hardened pins and bushings at all pivot points ensure long service life, even in high-cycle environments.
The clamp mounts horizontally via a flanged base and includes a 1/4 NPT air port. It operates within a temperature range of -14°F to 194°F and consumes 0.109 ft³ of air per cycle. Commonly used in automated welding and assembly stations, the 858 is a robust solution for precision clamping in high-output operations.
Quick Product Highlights
- 4000 lbf maximum holding capacity
- 2.48″ bore with built-in flow control
- Solid clamping arm, easily modified
- Sensor-ready for round and T-slot sensors
- Ideal for automated welding and assembly
Get your Destaco 858 Pneumatic Clamp at Kinequip today.
