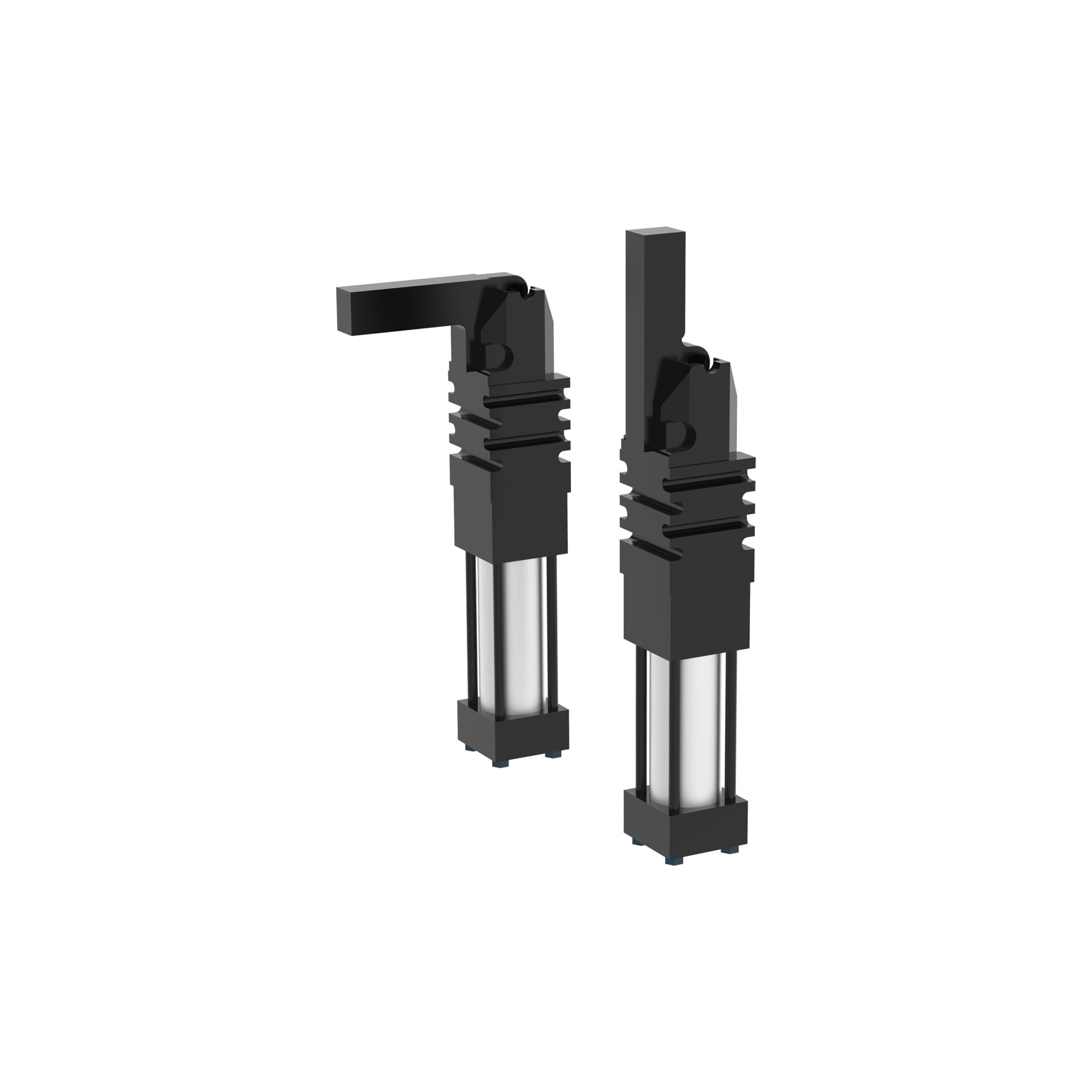

Destaco 871-2 Light-Duty Pneumatic Clamp

Destaco 871-2 | Light-Duty Pneumatic Clamp

SKU: 871-2

$997.55

The Destaco 871-2 delivers 60 Nm of torque with a 118° opening angle and toggle-lock safety. Perfect for automated welding, assembly, and testing setups.

Request a Quote

The Destaco 871-2 Light-Duty Pneumatic Clamp is a horizontal power clamp designed for fast, consistent clamping in automated systems. With a 1.5-inch cylinder bore and 60 Nm of torque at 5 bar, this clamp delivers reliable force while maintaining a compact footprint. Its 118° opening angle and center clamp arm style allow for easy access and secure holding of workpieces.

Built for light-duty applications, the 871-2 features a toggle-lock safety mechanism that keeps the clamp mechanically locked even if air pressure is lost. It’s ideal for welding, assembly, fixturing, and testing environments where speed and repeatability are essential.

This clamp can accommodate inconsistent workpiece thicknesses up to 0.18 inches and supports remote operation and sensor integration. Whether you’re working in industrial, automotive, or packaging sectors, the 871-2 offers dependable pneumatic clamping performance.

Quick Product Highlights

  • Horizontal pneumatic clamp with 118° opening
  • 1.5″ bore and 60 Nm torque at 5 bar
  • Toggle-lock safety feature for air loss protection
  • Supports remote operation and sensors
  • Ideal for welding, assembly, and fixturing

Get a quote for Destaco 871-2 Light-Duty Pneumatic Clamp from Kinequip today!

Weight (lb)

6.6

Product Type

Power Clamp

Air Port size

G 1/8

Product Series

870-2/871-2

Clamp Arm Style

Center

DistributorGroup

Workholding (Manual, Power and Hydraulic Clamps)

Product Function

Clamping

Cylinder Bore (in)

1.5

Opening Angle (deg)

118

Holding Torque (Max) (ft-lb)

192

Clamping Arm Torque At 5 Bar (ft-lb)

44

Air Consumption per double stroke at 72 psi (ft³)

0.03
