Destaco RPC-331 Jaw Parallel Gripper

Destaco RPC-331 Jaw Parallel Gripper

SKU: RPC-331

$2,334.00

The Destaco RPC-331 delivers 750 lbf of self-centering grip force with a compact body, triple-wedge design, and ±0.001″ repeatability—ideal for robotic gripping in automated industrial systems.

Qty

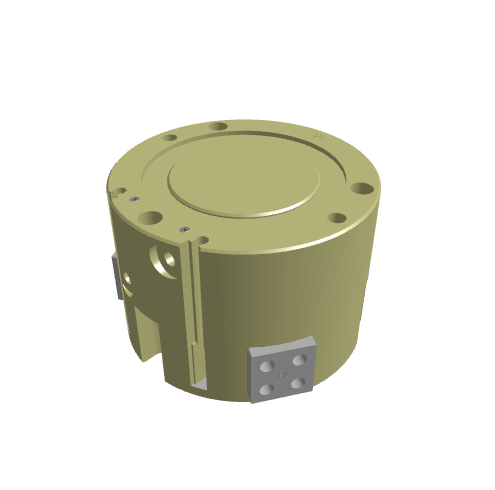

The Destaco RPC-331 Jaw Parallel Gripper is a 3-jaw pneumatic gripper designed for high-force, self-centering gripping in automated systems. Its compact body and triple-wedge design deliver consistent performance across a wide range of industrial applications.

With a 2.75-inch cylinder bore and 0.62-inch total stroke, the RPC-331 provides up to 750 lbf of grip force. Each jaw travels 0.31 inches, ensuring precise and repeatable motion with ±0.001-inch repeatability. The gripper supports finger lengths up to 3 inches and operates within a pressure range of 20–100 psi.

This model is part of Destaco’s Robohand series and features a 4.25-inch body length and 3.08 lb weight. It is compatible with accessories like SLKT-113 and CABL-010, and does not include a spindle. Ideal for gripping round or irregularly shaped parts, the RPC-331 is a reliable choice for robotic assembly, inspection, and packaging systems.

Quick Product Highlights

  • 3-jaw pneumatic parallel gripper
  • 750 lbf grip force with 0.62″ stroke
  • ±0.001″ repeatability for precision gripping
  • Supports up to 3″ finger length
  • Compact 4.25″ body for tight setups

Request a quote for Destaco RPC-331 Jaw Parallel Gripper at Kinequip today.

Stroke (in)

0.62

Weight (lb)

3

Product Type

3 Jaw Parallel

Number of Jaws

3

Product Series

RPC

Product Function

Gripping

Special Feature

Precision

Temp Range Viton

-30° to 150°C (-20° to 300°F)

Grip Force (lbf)

750

Cylinder Bore (in)

2.75

Stroke per Jaw (in)

0.31

Temp Range Standard

-35° to 80°C (-30° to 180°F)

accuracy_in_english

0.002

Pressure Range (psi)

20-100

Repeatability (±in)

0.001

Maximum Finger Length (in)

3

Actuation (Open/Closed) (Sec)

0.23

Service Manual
