GAST | 4AM-NRV-22BLL

SKU: 4AM-NRV-22BLL

$451.24

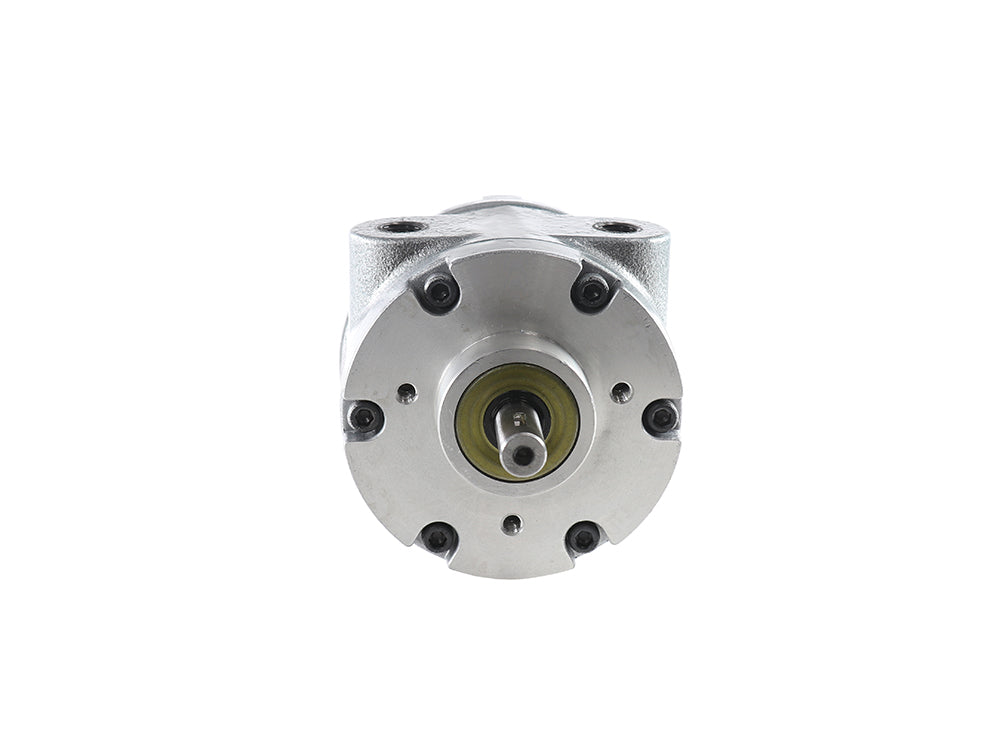

The Gast 4AM-NRV-22BLL is a compact, non-lubricated air motor engineered for safe, spark-free operation in hazardous environments. With adjustable speed, reversible rotation, and stall-resistant performance, it’s a reliable solution for demanding industrial applications.

The compact and portable GAST 4AM-NRV-22BLL at Kinequip offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition, these Gast air motors are cool running and have no electrical spark, which makes them ideal for use in hazardous locations.

Key Features:
  • Compact & Portable: Ideal for tight spaces and mobile applications.
  • Adjustable Speed & Power: Easily controlled via air throttling and pressure regulation.
  • Stall-Resistant: Can be stalled or overloaded without causing damage.
  • Cool, Spark-Free Operation: Safe for use in hazardous or explosive environments.
  • Reversible Rotation: Instant start, stop, and reverse capabilities.
  • Flexible Mounting: Face-mounted with a keyed output shaft; operates in any position.

Key Type:

#3 Woodruff

Max Air Consumption:

78 cfm ( 132.52 m3h )

Max Power:

1.05 hp ( 0.78 kW )

Max Pressure:

5.6 bar ( 81.22 psi )

Max Sound Level:

87 dB(A)

Max Speed:

2000 rpm

Max Torque:

56 in-lb ( 6.33 N m )

Mount

FACE

Output Shaft Type:

Keyed

Port Size and Type:

1/4" NPT

Regulatory Approval:

CE, ATEX

Rotation:

Reversible

Shaft Size:

0.5 in ( 12.7 mm )

Stainless Steel:

NO

Starting Torque @ 80psi:

28 in-lb ( 3.16 N m )

Torque Max Speed:

36 in-lb ( 4.07 N m )

Vanes

4

Weight

7 lbs ( 3.18 kg )
