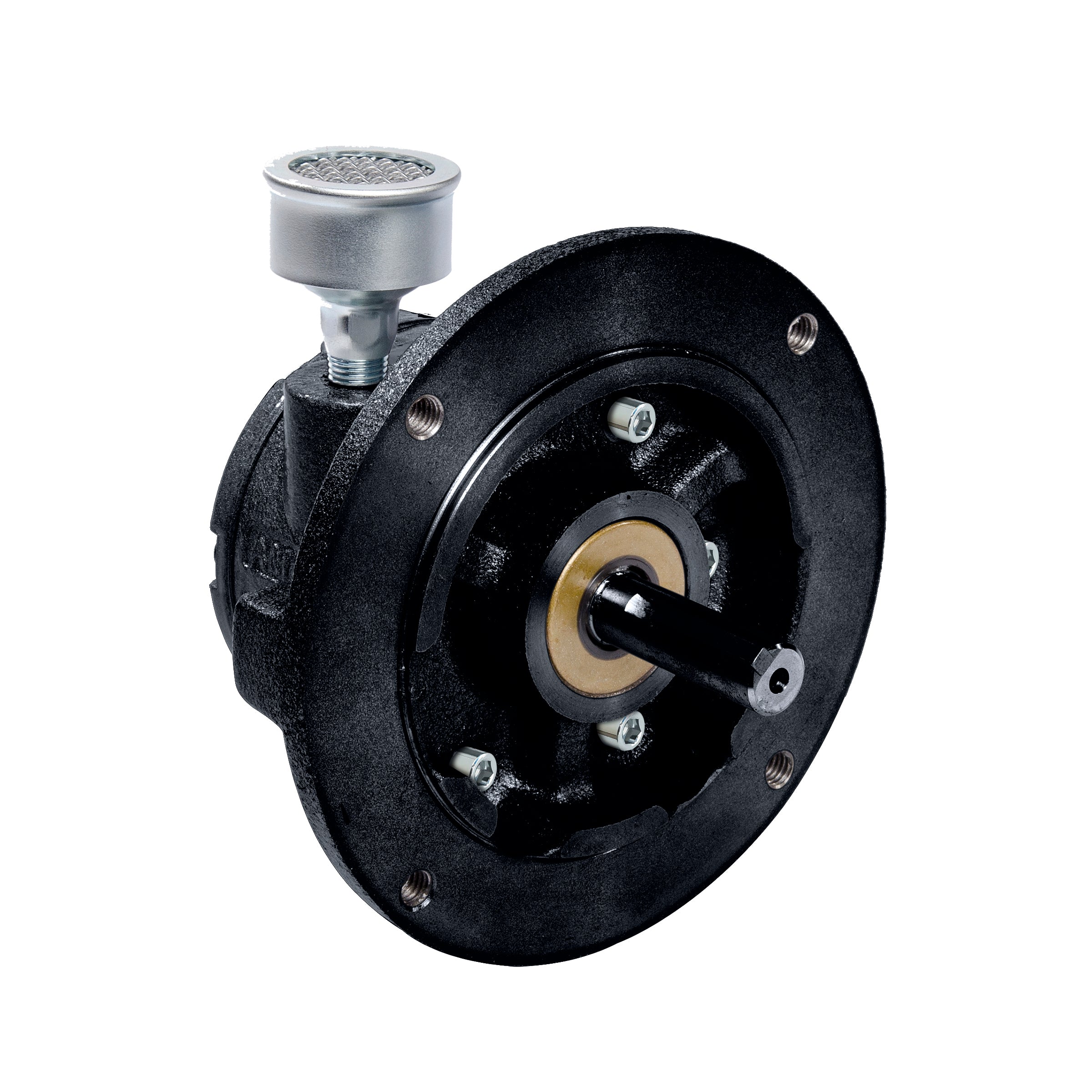

GAST | 4AM-NRV-50CNLP

SKU: 4AM-NRV-50CNLP

$593.75

The Gast 4AM-NRV-50CNLP is a compact, non-lubricated air motor designed for safe, spark-free operation in hazardous environments. With adjustable speed, reversible rotation, and stall-resistant performance, it delivers reliable power for demanding industrial applications.

Compact, rugged, and durable design the GAST 4AM-NRV-50CNLP Piston at Kinequip features oil-less operation, piston ring design that provides consistent flows throughout the service life of the unit, and high torque motors. Built to last, the 2H also features corrosion resistant internal components, easily replaceable wear items and proprietary Teflon filled piston rings, help to maximize uptime and minimize downtime.

Features:
  • Non-lubricated design for cleaner operation and reduced maintenance
  • Reversible rotation with instant start, stop, and reverse capabilities
  • Stall- and overload-resistant without risk of motor damage
  • Cool-running and spark-free, ideal for hazardous or explosive environments
  • Adjustable speed and torque via air throttling and pressure control

Key Type

M30-KEYSQ 1 1/4

Max Air Consumption:

78 cfm ( 132.52 m3h )

Max Power:

1.05 hp ( 0.78 kW )

Max Pressure:

5.6 bar ( 81.22 psi )

Max Sound Level:

87 dB(A)

Max Speed:

2000 rpm

Max Torque:

56 in-lb ( 6.33 N m )

Mount:

flange

Output Shaft Type:

Keyed

Port Size and Type:

1/4" NPT

Regulatory Approval:

CE, ATEX

Rotation:

Reversible

Shaft Size:

0.5 in ( 12.7 mm )

Stainless Steel:

NO

Starting Torque @ 80psi:

28 in-lb ( 3.16 N m )

Torque Max Speed:

36 in-lb ( 4.07 N m )

Vanes:

4

Weight:

11 lbs ( 4.99 kg )
