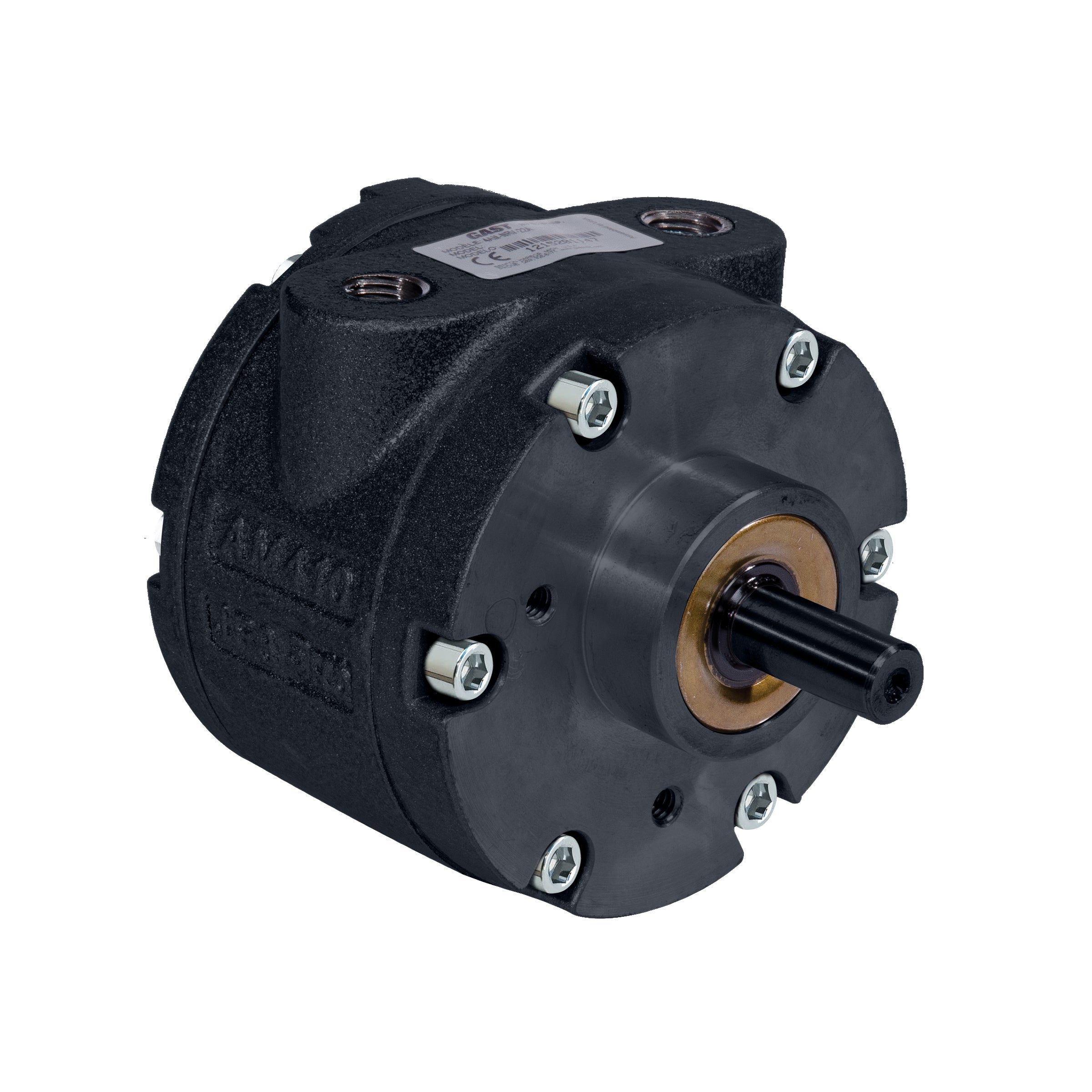

GAST | 4AM-NRV-54ANLP

SKU: 4AM-NRV-54ANLP

$569.05

The Gast 4AM-NRV-54ANLP is a compact, non-lubricated air motor designed for safe, spark-free operation in hazardous environments. With adjustable speed, reversible rotation, and stall-resistant performance, it’s ideal for demanding industrial applications where reliability and flexibility are key.

The compact and portable GAST 4AM-NRV-54ANLP at Kinequip offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition, these Gast air motors are cool running and have no electrical spark, which makes them ideal for use in hazardous locations.

Highlights:
  • Compact & Portable: Designed for space-constrained and mobile applications.
  • Adjustable Speed & Power: Easily controlled via air throttling and pressure regulation.
  • Stall-Resistant: Can be stalled or overloaded without risk of motor damage.
  • Cool & Spark-Free Operation: Safe for use in hazardous or explosive environments.
  • Flexible Mounting: Operates in any position with multiple mounting options.

Key Type

#3 Woodruff

Max Air Consumption

78 cfm ( 132.52 m3h )

Max Power

1.05 hp ( 0.78 kW )

Max Pressure

5.5 bar ( 79.77 psi )

Max Sound Level

87 dB(A)

Max Speed

2000 rpm

Max Torque

56 in-lb ( 6.33 N m )

Mount

Face

Output Shaft Type

keyed

Port Size and Type

1/4" NPT

Regulatory Approval

CE, ATEX

Starting Torque @ 80psi

28 in-lb ( 3.16 N m )

Torque Max Speed

36 in-lb ( 4.07 N m )

Vanes

8

Weight

7 lbs (3.18 kg)
