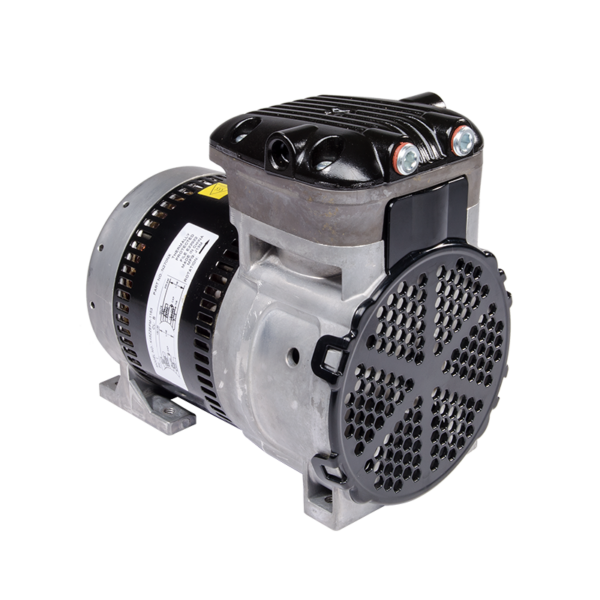

The Gast 86R142-P001B-N270X at Kinequip is a high-performance, oil-less rocking piston compressor and vacuum pump designed for quiet, efficient operation. Re-engineered from the ground up, it delivers up to 100 PSI pressure and 27.2 inHg vacuum, making it ideal for medical, laboratory, packaging, and automation applications.
Its patented crossover chamber design dampens sound and optimizes airflow, while the full metal body and reinforced chamber walls enhance durability. The unit operates with a 100% duty cycle and includes thermal protection for safe, continuous use. It supports dual voltage (100–120V / 200–240V) and offers flow rates of 1.7 CFM at 50 Hz and 2.0 CFM at 60 Hz.
The 86R142-P001B-N270X is compatible with accessories like the K965 service kit, B300A filter/muffler, AF887 pressure regulator, and AA550C-V vacuum regulator. Optional Sound Shield technology reduces noise by up to 25% dB(A), making it ideal for noise-sensitive environments.
Quick Product Highlights
- Oil-less rocking piston compressor/vacuum pump
- 100 PSI max pressure; 27.2 inHg max vacuum
- 1.7–2.0 CFM flow rate depending on frequency
- Dual voltage support with thermal protection
- Compatible with Sound Shield and K965 service kit
Get your Gast 86R142-P001B-N270X at Kinequip today.
Can water be pumped through my unit?
No, clean dry air only.
I am an OEM looking to specify a custom 86R or 87R configuration for my needs. What customization options are available?
Does my 86R or 87R compressor or pump come from the factory with Sound Shield installed?
There are a few answers. Sound Shield is offered as an aftermarket upgrade to be installed yourself or at an authorized GAST distributor. Over time, GAST plans to introduce new 86R and 87R models with Sound Shield installed at the factory so please consult your local GAST distributor for availability. However, customers looking to buy GAST 86R or 86R models in bulk can consult the factory to consider creating a unique SKU with Sound Shield installed.
If I install Sound Shield, does it affect my factory warranty?
If properly fitted and operated under normal conditions of use, the remainder of the factory warranty will continue with Sound Shield installed.
How do I keep my 86R or 87R running at the same performance it left the factory?
Does Sound Shield cause an increase in temperatures in or around the compressor or pump?
Each compressor or pump configuration yields slightly different results, however, GAST testing has shown either a reduction in exhaust temperature or negligible temperature changes. Please consult the factory for specific model temperature data.
How does Sound Shield affect life of the 86R or 87R?
There is no impact to the life of the unit when proper preventative maintenance is performed. We recommend replacing our Sound Shield AS321 Silencers every 2000 hours or 2 years, whichever comes first.
Does Sound Shield impact air flow for either pressure or vacuum configurations?
Each compressor or pump configuration yields slightly different results, however, GAST testing has shown that vacuum models see negligible changes while pressure models see minimal changes in flow. Please consult the factory for specific model flow data.
Can additional filters be added to an 86R or 87R that has already been fitted with Sound Shield?
No, the internal silencer located within Sound Shield takes up the entire port; therefore, additional mufflers or filters cannot be added.
