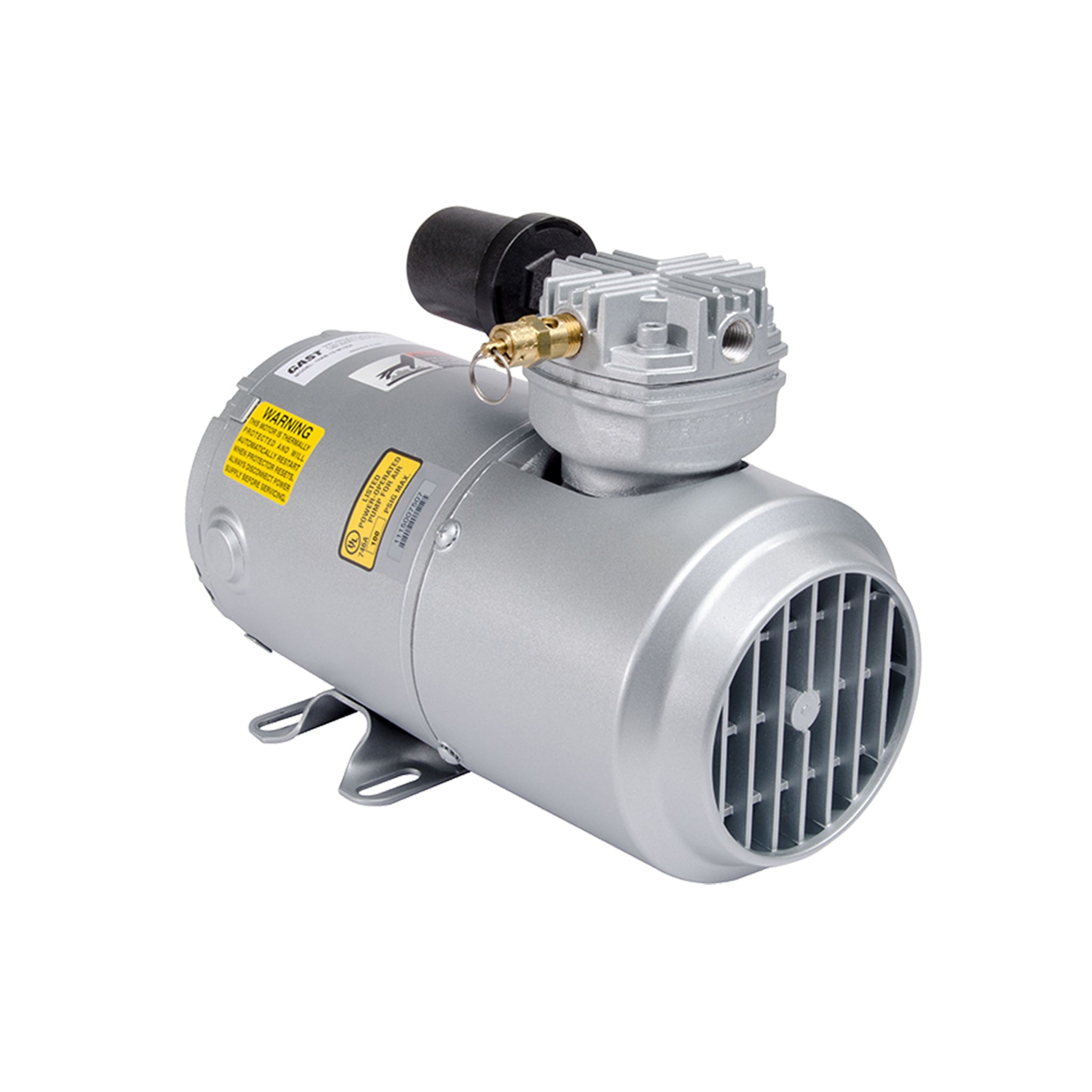

The Gast 2LAF-10-M200X Air Compressor at Kinequip is a compact, oil-less piston compressor designed for continuous-duty operation in clean air applications. With a 0.25 HP motor and a maximum pressure of 50 PSI, this unit delivers up to 2.1 CFM of free air flow at 60 Hz. It features a single-phase 115V motor, 1/4″ NPT inlet and outlet ports, and a maximum speed of 1,725 RPM.
The oil-less design ensures contamination-free air, making it ideal for use in laboratories, packaging systems, and beverage dispensing. Its rugged construction and thermal protection support reliable performance in demanding environments. This model is not rated for vacuum operation.
Quick Product Highlights
- Oil-less piston compressor for clean air delivery
- 0.25 HP motor with 2.1 CFM output
- 50 PSI max pressure
- 115V single-phase motor
- 1/4″ NPT inlet and outlet ports
- Not rated for vacuum use
Get your Gast 2LAF-10-M200X Air Compressor at Kinequip today.
Can water be pumped through my piston unit?
No, clean dry air only.
My piston pump is leaking around the heads is this normal?
The piston unit is not leak proof, leakage around the head is normal, and doesn’t affect the specified flow rate of unit.
What kind of oil do I need for my piston unit?
None, Gast piston units are oilless, and do not require lubrication.
Can I pump combustible gas through my piston pump?
No, none of Gast models are designed to pump combustible gases.
I received my dual voltage unit, wired it for 115 volt power, it runs very slow and lopes. What is wrong?
The unit is wired for high voltage from the factory, check the motor label to see how to rewire unit to for low voltage.
What can I use to clean my piston unit with?
Gast flushing solvent AH255D, if this is not available you can use electrical contact cleaner.
Are there repair kits available for my piston unit?
Yes, check the operation manual for kit required. If you don’t have the manual, go to Technical Documents and choose manual.
What comes in a repair kit?
Rings, seals, rider ring, intake & exhaust valves, and gaskets for the head and cylinder.
Can I replace the motor of my piston unit?
The motor can not be replaced in the field, the unit should be sent to an authorized service center.
Can I replace the rod assemblies in my piston unit?
The rod assembly can not be replaced in the field, the unit should be sent to an authorized service center.
