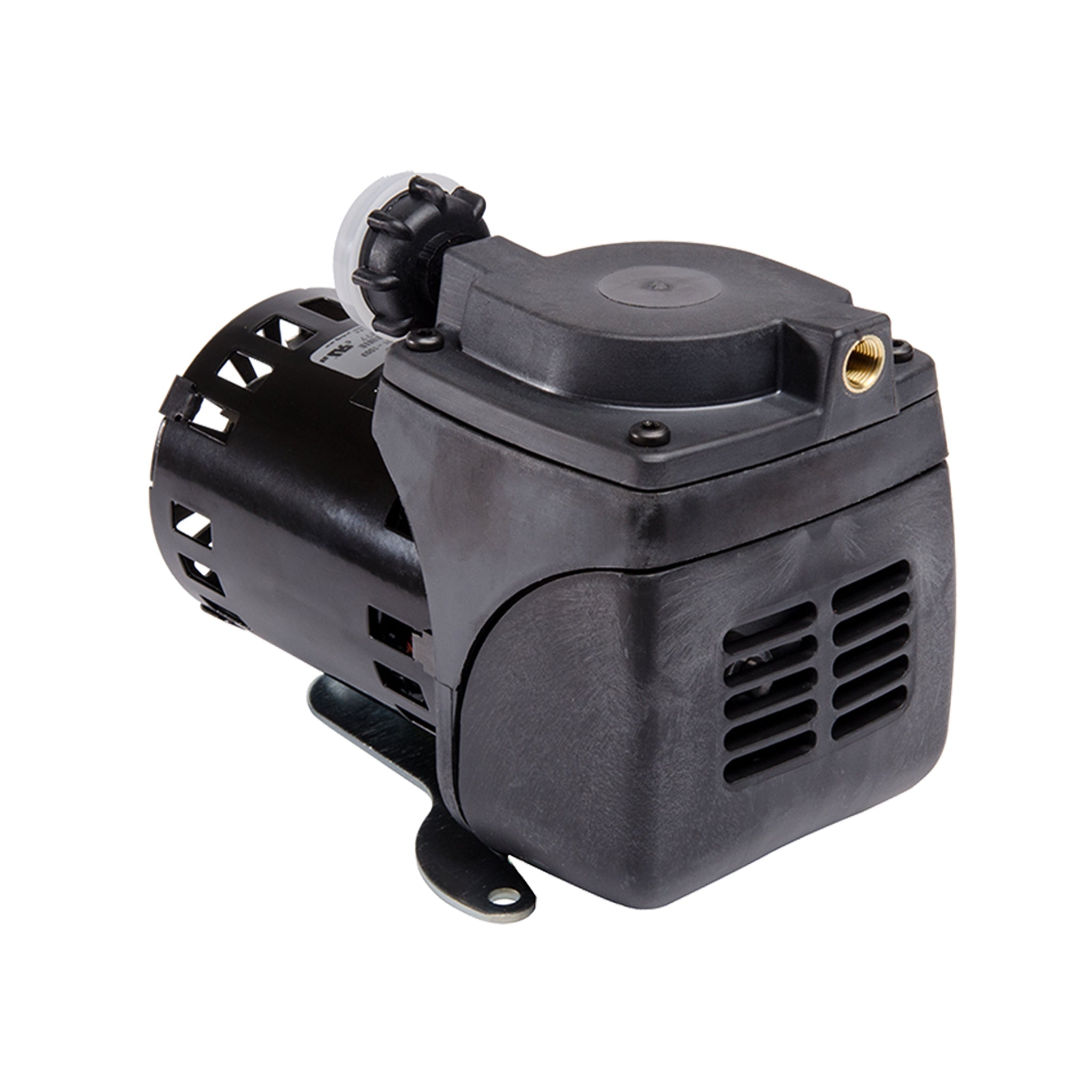

Gast 22D1180-201-1003 at Kinequip is a miniature oil-less diaphragm pump designed for compact, low-maintenance air and vacuum applications. Delivering up to 25 PSI pressure and 23 inHg vacuum, this 1/20 hp unit operates at 1725 RPM and supports open flow rates between 26.3 and 36.8 LPM. It’s ideal for medical, laboratory, and analytical equipment where quiet, clean performance is essential.
The pump features permanently lubricated ball bearings on the rod and motor drive, with a rear sleeve bearing for added durability. Its head assembly and bracket are constructed from Polyphenylene Sulfide (PPS), offering excellent chemical and heat resistance. Stainless steel valves and a neoprene/nylon diaphragm ensure reliable operation across a wide range of conditions.
Designed for field serviceability, the 22D1180-201-1003 is compatible with multiple accessories and mounting configurations. It’s commonly used in blood analysis, respirators, vacuum pad hold-downs, dental equipment, and air/gas analysis systems. The unit weighs 4.8 lbs and runs on 115V at 60 Hz with a 1.6 amp draw.
Quick Product Highlights
- 1/20 hp oil-less diaphragm pump
- 25 PSI max pressure, 23 inHg vacuum
- PPS head assembly, stainless steel valves
- Ideal for medical and lab applications
Get your Gast 22D1180-201-1003 at Kinequip today.
