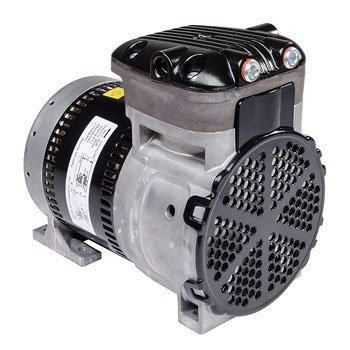

Gast 86R130-101-N270X at Kinequip is a compact, oil-less rocking piston compressor designed for clean, quiet, and continuous-duty performance. Part of the re-engineered 86R series, this unit is ideal for medical, laboratory, and industrial applications requiring reliable air delivery in tight spaces. Its motor-mounted design includes thermal protection and supports uninterrupted operation.
The 86R130-101-N270X features a patented crossover chamber that reduces noise while optimizing airflow. Its full metal body and reinforced chamber perimeters enhance durability, while flexible cups and twin intake/exhaust seals allow for greater pressure capabilities.
UL and CE approved, this compressor is also compatible with Gast’s Sound Shield upgrade, which reduces noise by up to 25% dB(A) and 40% Sone. Whether you’re powering pneumatic tools or sensitive lab equipment, this unit delivers dependable performance with minimal maintenance.
Quick Product Highlights
- Oil-less rocking piston design
- Quiet and compact operation
- Durable metal construction
- Compatible with Sound Shield upgrade
- UL and CE approved
Get your Gast 86R130-101-N270X at Kinequip today.
Can water be pumped through my unit?
No, clean dry air only.
I am an OEM looking to specify a custom 86R or 87R configuration for my needs. What customization options are available?
GAST offers custom solutions factory direct and through our authorized distribution network. Custom options available, but are not limited to: wiring & connectors, capacitor mounting & covers, port configurations, alternative mufflers and filters, pressure gauges & regulators, and bulk packaging. Please consult the factory (technical.gast@idexcorp.com) or find a local distributor to inquire further.
Does my 86R or 87R compressor or pump come from the factory with Sound Shield installed?
There are a few answers. Sound Shield is offered as an aftermarket upgrade to be installed yourself or at an authorized GAST distributor. Over time, GAST plans to introduce new 86R and 87R models with Sound Shield installed at the factory so please consult your local GAST distributor for availability. However, customers looking to buy GAST 86R or 86R models in bulk can consult the factory to consider creating a unique SKU with Sound Shield installed.
If I install Sound Shield, does it affect my factory warranty?
If properly fitted and operated under normal conditions of use, the remainder of the factory warranty will continue with Sound Shield installed.
How do I keep my 86R or 87R running at the same performance it left the factory?
Following the GAST recommended service intervals will help keep your compressor running at peak performance. We recommend service using a GAST Service Kit, as shown above in BUY KITS & ACCESSORIES every 2000 hours or every 2 years, whichever comes first. Additionally, if fitted with Sound Shield, the AS321 Silencers should be replaced during the same interval period.
Does Sound Shield cause an increase in temperatures in or around the compressor or pump?
Each compressor or pump configuration yields slightly different results, however, GAST testing has shown either a reduction in exhaust temperature or negligible temperature changes. Please consult the factory for specific model temperature data.
How does Sound Shield affect life of the 86R or 87R?
There is no impact to the life of the unit when proper preventative maintenance is performed. We recommend replacing our Sound Shield AS321 Silencers every 2000 hours or 2 years, whichever comes first.
Does Sound Shield impact air flow for either pressure or vacuum configurations?
Each compressor or pump configuration yields slightly different results, however, GAST testing has shown that vacuum models see negligible changes while pressure models see minimal changes in flow. Please consult the factory for specific model flow data.
Can additional filters be added to an 86R or 87R that has already been fitted with Sound Shield?
No, the internal silencer located within Sound Shield takes up the entire port; therefore, additional mufflers or filters cannot be added.
