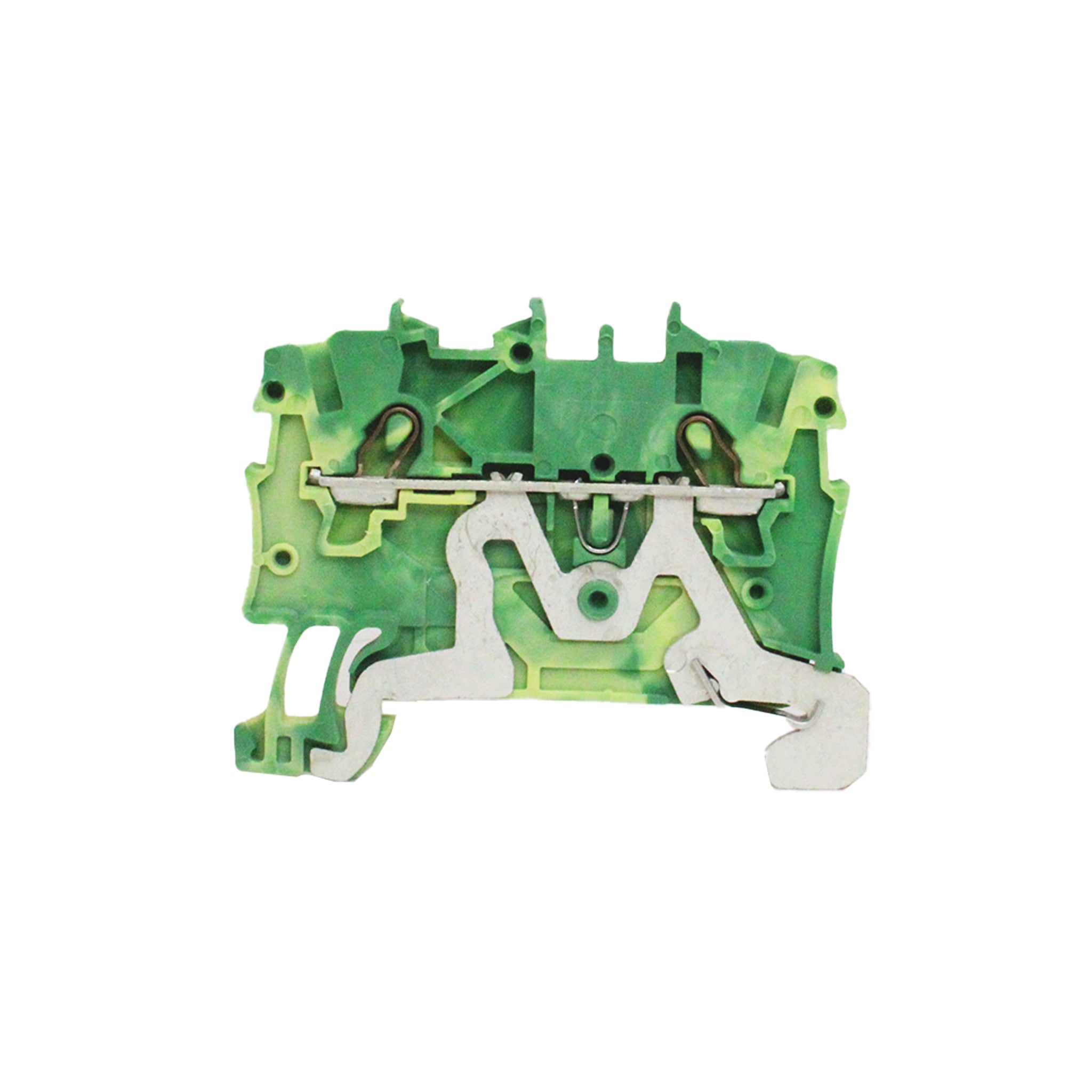

The WAGO 2000-1207 Ground Terminal Block is a compact, DIN rail-mounted solution for grounding applications in control panels and automation systems. It features two connection points and supports a nominal cross-section of 1 mm². Designed for use with copper conductors, it accepts wire sizes from 0.14 mm² to 1.5 mm², including solid, fine-stranded, and ferruled types.
This terminal block uses WAGO’s Push-in CAGE CLAMP® technology, allowing fast, tool-free wiring with front-entry access. It includes side and center marking options for easy identification and fits standard DIN rails (35 x 15 and 35 x 7.5 mm). The green-yellow polyamide housing meets UL94 V-0 flammability standards and is suitable for Ex e II applications.
Its slim 3.5 mm width and 32.9 mm height make it ideal for tight installations. The unit includes two jumper slots for flexible circuit configurations and weighs just 5.7 grams. It is RoHS compliant and certified under ATEX, IECEx, UL, and other international standards for safe use in hazardous environments.
Quick Product Highlights
- 2-conductor ground terminal block
- Push-in CAGE CLAMP® connection
- Accepts 0.14–1.5 mm² copper wires
- DIN rail mount (35 x 15 / 35 x 7.5 mm)
- Green-yellow polyamide housing
- UL94 V-0 flame-retardant rating
- Suitable for Ex e II applications
Get your WAGO 2000-1207 Ground Terminal Block at Kinequip today.
