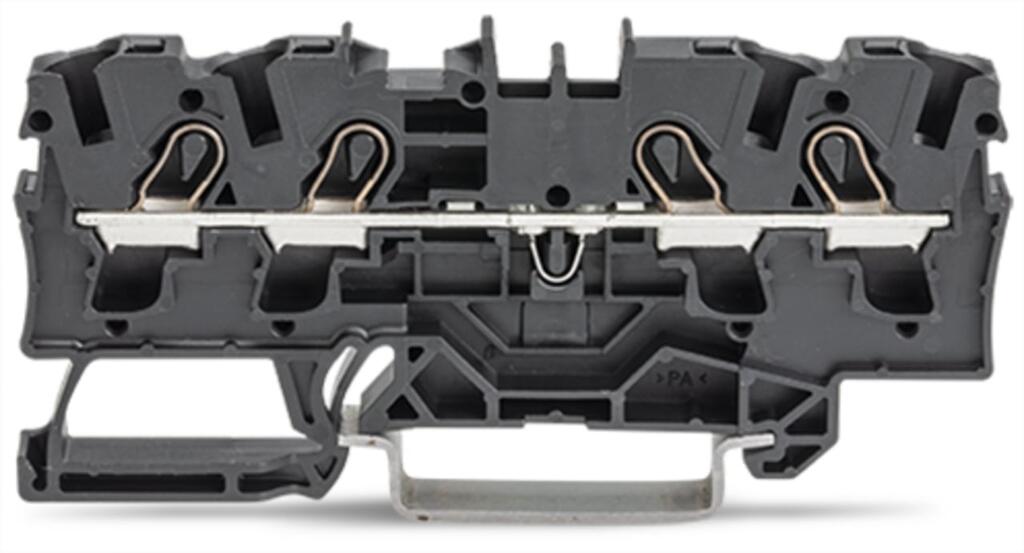

The WAGO 2004-1405 4-Conductor Terminal Block is a compact, DIN-rail-mounted feedthrough terminal designed for efficient wiring in industrial control systems. It supports up to four conductors and is rated for wire sizes from 10 to 20 AWG (0.5 to 6 mm²). This terminal block is part of WAGO’s TOPJOB® S series and is suitable for Ex e II applications, making it ideal for hazardous environments.
The unit features Push-in CAGE CLAMP® technology, allowing fast, tool-free wiring of solid and ferruled conductors. It mounts securely to standard DIN rails (35 x 15 and 35 x 7.5 mm) and includes both side and center marking options for easy identification. The black housing is made from flame-retardant polyamide (UL94 V-0) and measures just 6.2 mm wide, helping save space in tight panels.
Rated for up to 800V and 41A under IEC standards (600V and 30A under UL), this terminal block delivers reliable performance in demanding conditions. It’s ideal for control cabinets, automation systems, and electrical distribution setups where compact, high-capacity wiring is needed.
Quick Product Highlights
- 4-conductor feedthrough terminal block
- Supports 10–20 AWG (0.5–6 mm²) wires
- Push-in CAGE CLAMP® technology
- DIN rail mount (35 x 15 / 35 x 7.5 mm)
- Rated up to 800V and 41A (IEC)
- Flame-retardant polyamide housing
Get your WAGO 2004-1405 4-Conductor Terminal Block at Kinequip today.
