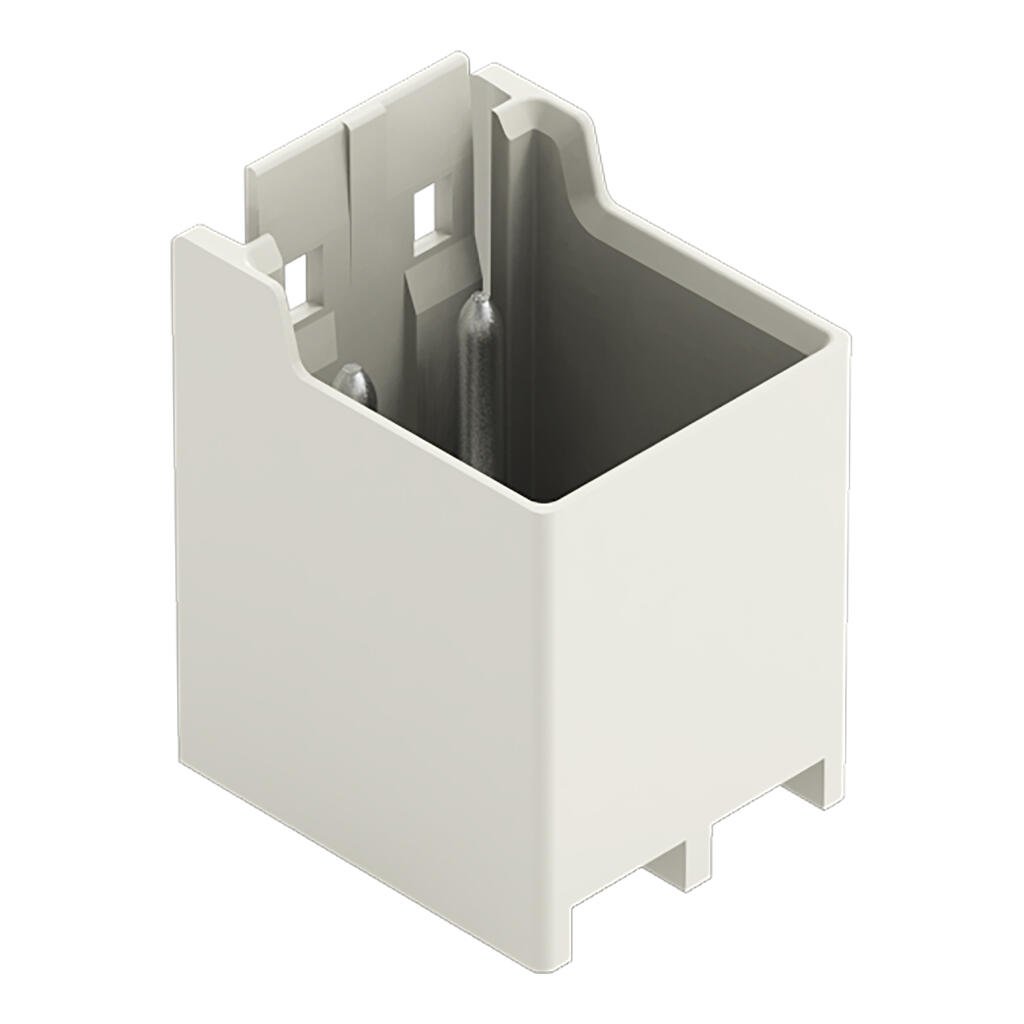

The WAGO 2092-1404 THT Male Header connects printed circuit boards to external wiring with a straight, through-hole design. It features four shrouded male pins spaced 5 mm apart. Each pin has a 1.4 mm diameter and fits standard soldering setups.
This header belongs to WAGO’s picoMAX® 5.0 series. It mounts vertically on the PCB and locks into place for a secure connection. You can use it in control systems, automation panels, and industrial electronics. The compact layout helps save space and keeps wiring organized.
It handles up to 16 A at 250 V (IEC) or 15 A at 300 V (UL). The housing uses glass-filled polyphthalamide (PPA), which resists heat and wear. Tin-plated copper contacts provide strong conductivity and long-term performance. It operates between -60°C and 100°C, making it suitable for harsh environments. This header supports variable coding and includes anti-rotation protection.
Quick Product Highlights
- 4-pole straight male header for PCB mounting
- 5 mm pin spacing; 1.4 mm solder pins
- Rated for 16 A (IEC) / 15 A (UL)
- Tin-plated copper contacts; PPA housing
- RoHS3 compliant and UL94 V-0 rated
Get your WAGO 2092-1404 THT Male Header at Kinequip today.
