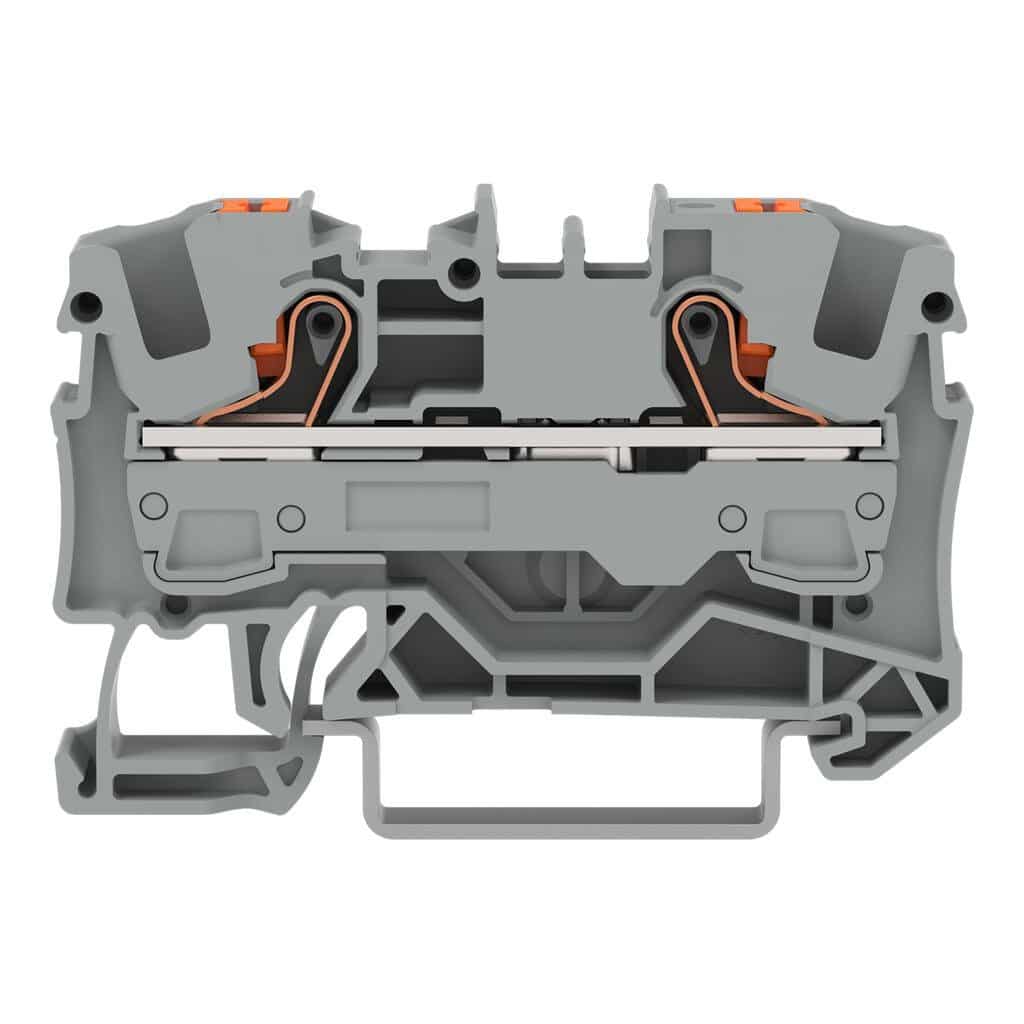

The WAGO 2206-1201 Feedthrough Terminal Block connects two conductors quickly and securely. It uses Push-in CAGE CLAMP® technology, so you can insert solid or ferruled wires without tools. The push-button release makes wire changes fast and easy.
This terminal block supports wire sizes from 8 to 14 AWG (1 to 10 mm²). It handles up to 57 A at 800 V (IEC) and 50 A at 600 V (UL), making it a strong choice for control panels and industrial systems. The 7.5 mm wide housing fits standard DIN rails and works with both 35 x 15 and 35 x 7.5 rail sizes.
You can use this block for through-wiring or potential distribution. It includes a test port and side and center markings for easy identification. The insulation is made from durable polyamide (PA66), which resists heat and wear. The stripping length ranges from 13 to 15 mm, giving you flexibility during setup.
This part meets RoHS3 standards and is not affected by REACH rules. It performs well in demanding environments and supports safe, long-term installations.
Quick Product Highlights
- 2-conductor feedthrough terminal block with push-button release
- Push-in CAGE CLAMP® for tool-free wiring
- Rated for 57 A (IEC) / 50 A (UL)
- Fits 8–14 AWG wires; 7.5 mm wide
- RoHS3 compliant and REACH unaffected
