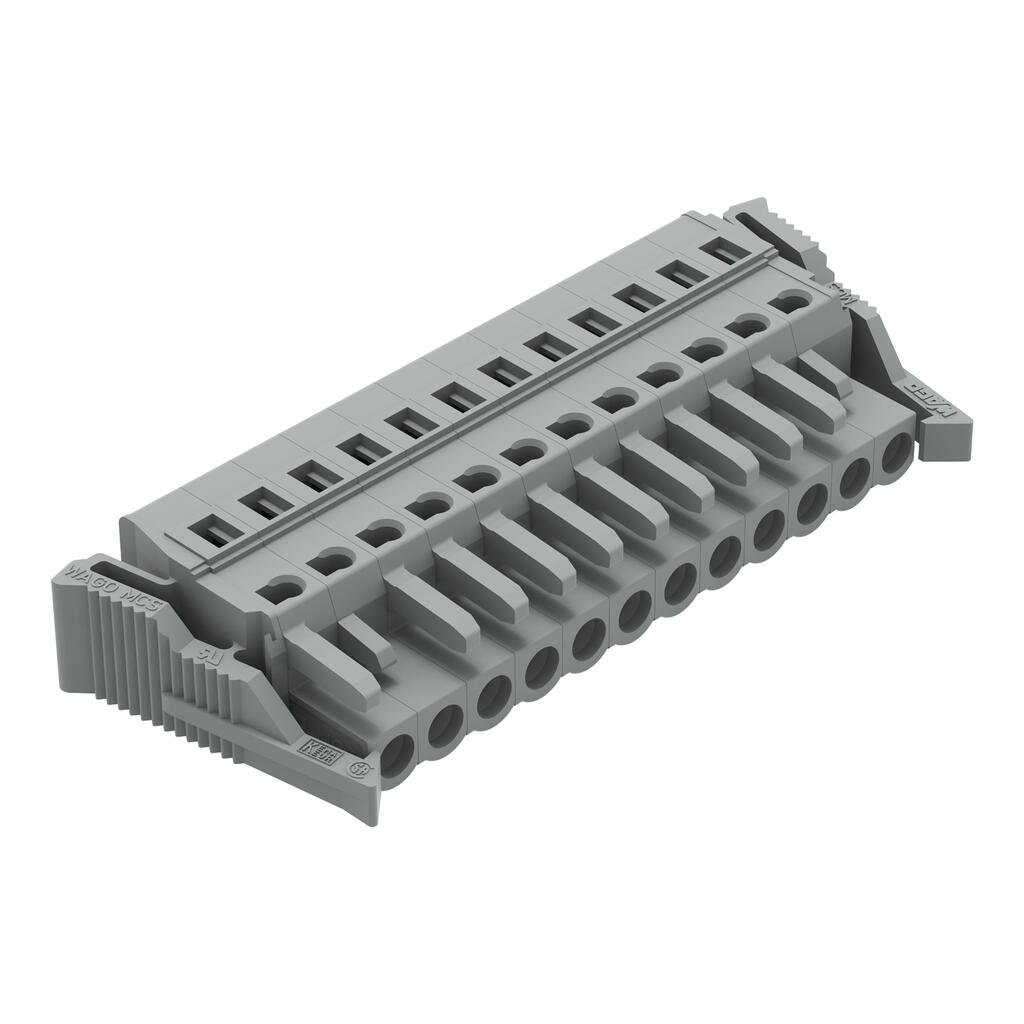

The WAGO 231-112/037-000 1-Conductor Female Plug is a 12-pole connector designed for free-hanging, in-line applications. It features CAGE CLAMP® technology for secure, tool-free wire termination and reliable electrical connections.
This plug supports wire sizes from 0.08 mm² to 2.5 mm² (28–12 AWG) and is rated for up to 16 A and 630 V (IEC). It has a 5 mm pin spacing and includes lateral locking levers for secure mating. The plug wire entry is positioned at 180°, making it ideal for compact layouts.
Constructed from flame-resistant gray polyamide (UL94 V-0), the housing ensures long-term durability in industrial environments. The connector operates reliably in temperatures from -60°C to 85°C and complies with RoHS3 and REACH standards. It belongs to WAGO’s MCS MIDI Classic series and is suitable for automation and control systems.
Quick Product Highlights
- 12-pole female plug, 5 mm pitch
- CAGE CLAMP® termination, 180° wire entry
- Supports 0.08–2.5 mm² (28–12 AWG) wire
- Rated 16 A, 630 V (IEC)
- Flame-resistant UL94 V-0 housing
- RoHS3 compliant and REACH unaffected
Get your WAGO 231-112/037-000 1-Conductor Female Plug at Kinequip today.
