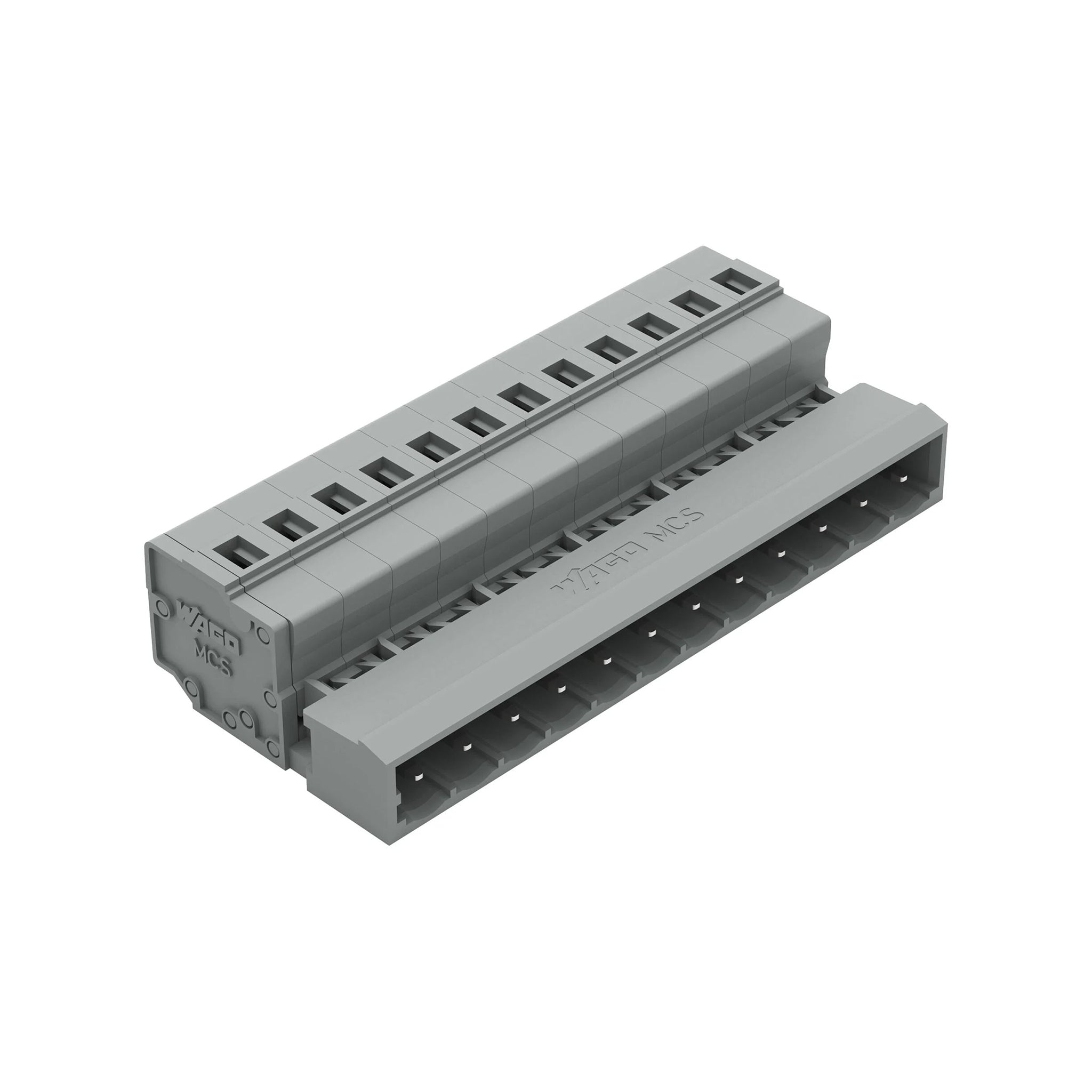

The WAGO 231-612 Male Connector 12-Pole is a 12-position terminal block plug designed for free-hanging, in-line use. It features a 5 mm pin spacing and supports wire entry at 180°, making it ideal for compact wiring setups. This connector uses WAGO’s screwless spring cage clamp technology, allowing fast, secure connections without tools.
It supports wire sizes from 12 to 28 AWG (0.08–2.5 mm²) and operates at up to 630 V (IEC) and 600 V (UL), with current ratings of 12 A (IEC) and 15 A (UL). The housing is made from flame-retardant polyamide (PA66), rated UL94 V-0, and includes tin-plated electrolytic copper contacts for reliable conductivity.
The connector belongs to the MCS MIDI Classic series and is built for durability in industrial environments. It has a wire strip length of 8–9 mm and an insulation height of 14.3 mm. With its gray color and compact dimensions, it integrates easily into control panels and automation systems.
Quick Product Highlights
- 12-pole male connector, 5 mm pitch
- Screwless spring cage clamp termination
- Free-hanging, in-line mounting
- Rated for 630 V / 15 A
- Accepts 12–28 AWG (0.08–2.5 mm²) wires
- Flame-retardant PA66 housing, UL94 V-0
- Tin-plated copper contacts
