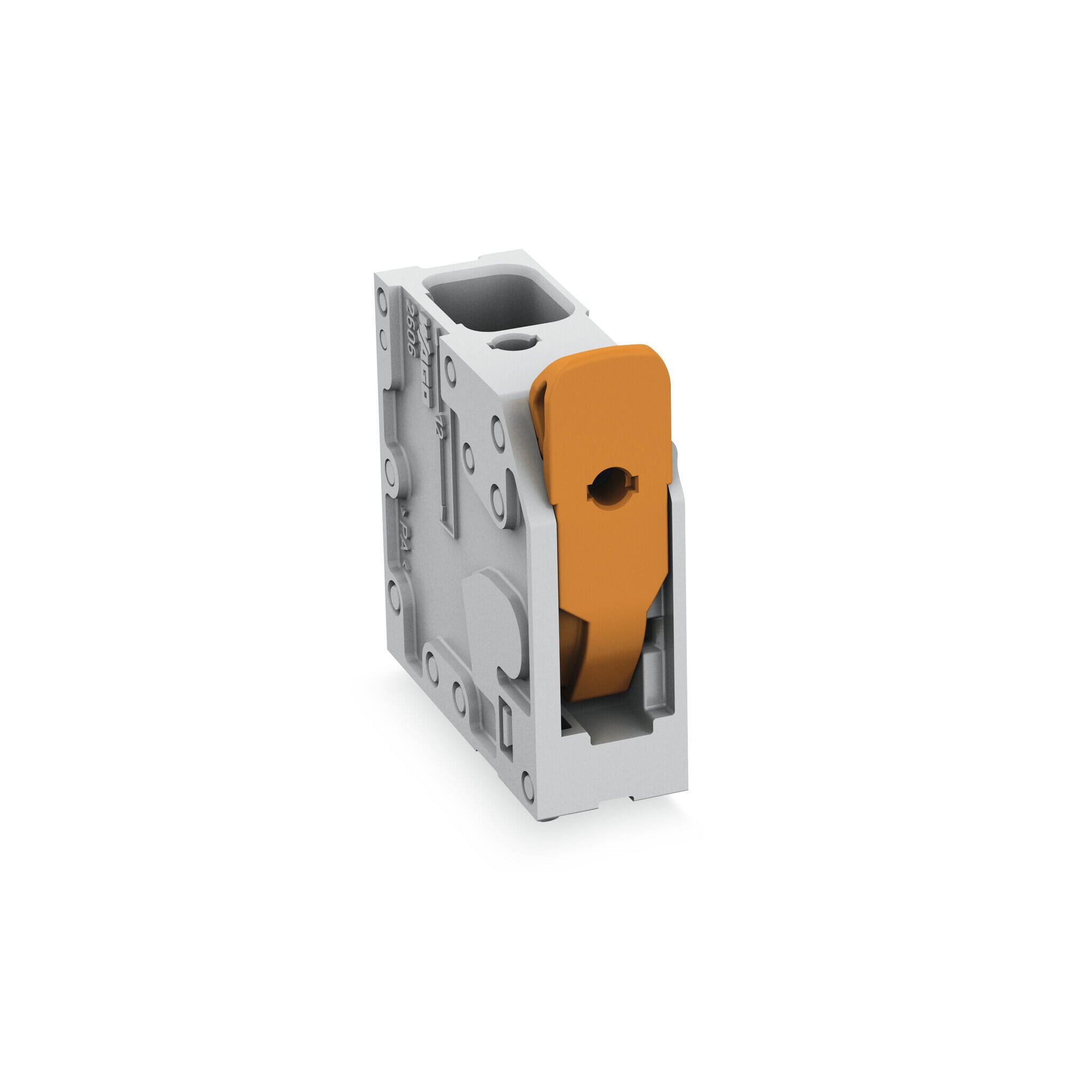

The WAGO 2606-3101 PCB Terminal Block is a single-position, vertical-mount connector designed for high-current applications on printed circuit boards. It supports wire sizes from 8 AWG to 24 AWG and is rated for up to 600 V and 31 A.
This terminal block features WAGO’s Push-in CAGE CLAMP® technology with a lever for easy, tool-free wire insertion. Its compact design includes a 7.5 mm pin spacing and vertical mating orientation, making it ideal for space-constrained PCB layouts. The housing is made of flame-retardant polyamide (PA66), and the contact surfaces are tin-plated electrolytic copper for reliable conductivity.
Built for industrial control systems and power electronics, the 2606-3101 operates in temperatures from -60°C to +105°C. It is RoHS3 compliant and REACH unaffected, ensuring environmental safety and long-term durability. The lever mechanism simplifies wire handling and ensures secure, maintenance-free connections.
Quick Product Highlights
- 1-position PCB terminal block with lever
- Push-in CAGE CLAMP® for tool-free wiring
- Supports 8–24 AWG wires
- Rated 600 V / 31 A
- 7.5 mm pin spacing; vertical mating orientation
- Flame-retardant PA66 housing; tin-plated copper contacts
Get your WAGO 2606-3101 PCB Terminal Block at Kinequip today.
