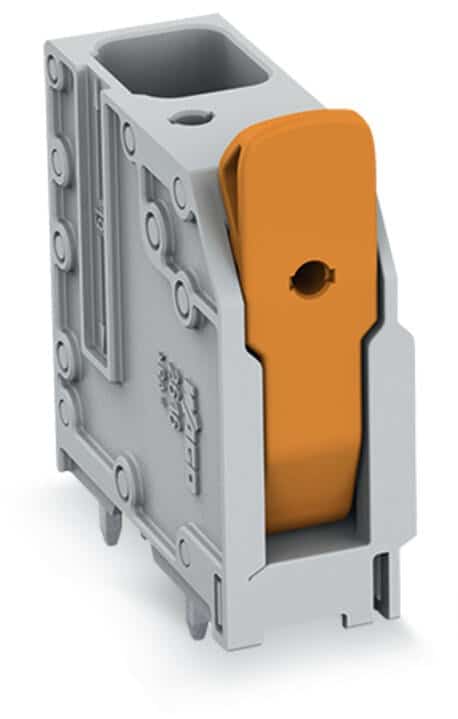

The WAGO 2616-3101 PCB Terminal Block is a high-performance connector designed for demanding power applications. It features a single-pole configuration with Push-in CAGE CLAMP® technology, allowing fast, tool-free wiring for all conductor types.
This terminal block supports conductor sizes from 0.75 mm² to 16 mm² and is rated for 76 A and 1000 V, making it ideal for high-load circuits. The 90° angled entry and pluggable design simplify installation on PCBs using through-hole technology (THT). It requires a strip length between 18 mm and 20 mm for proper connection.
The housing is made of flame-resistant gray polyamide (PA66), and the clamping spring is chrome-nickel steel. The contact surfaces are tin-plated electrolytic copper, ensuring excellent conductivity and corrosion resistance. With dimensions of 12.8 x 38.2 x 29.4 mm, it fits compactly into control panels and power distribution systems.
Quick Product Highlights
- 1-pole terminal block with 90° angled entry
- Push-in CAGE CLAMP® connection
- Rated 76 A, 1000 V
- Supports 0.75–16 mm² conductors
- THT mounting with 1.2 x 1.2 mm solder pins
- Flame-resistant PA66 housing, RoHS3 compliant
Get your WAGO 2616-3101 PCB Terminal Block at Kinequip today.
