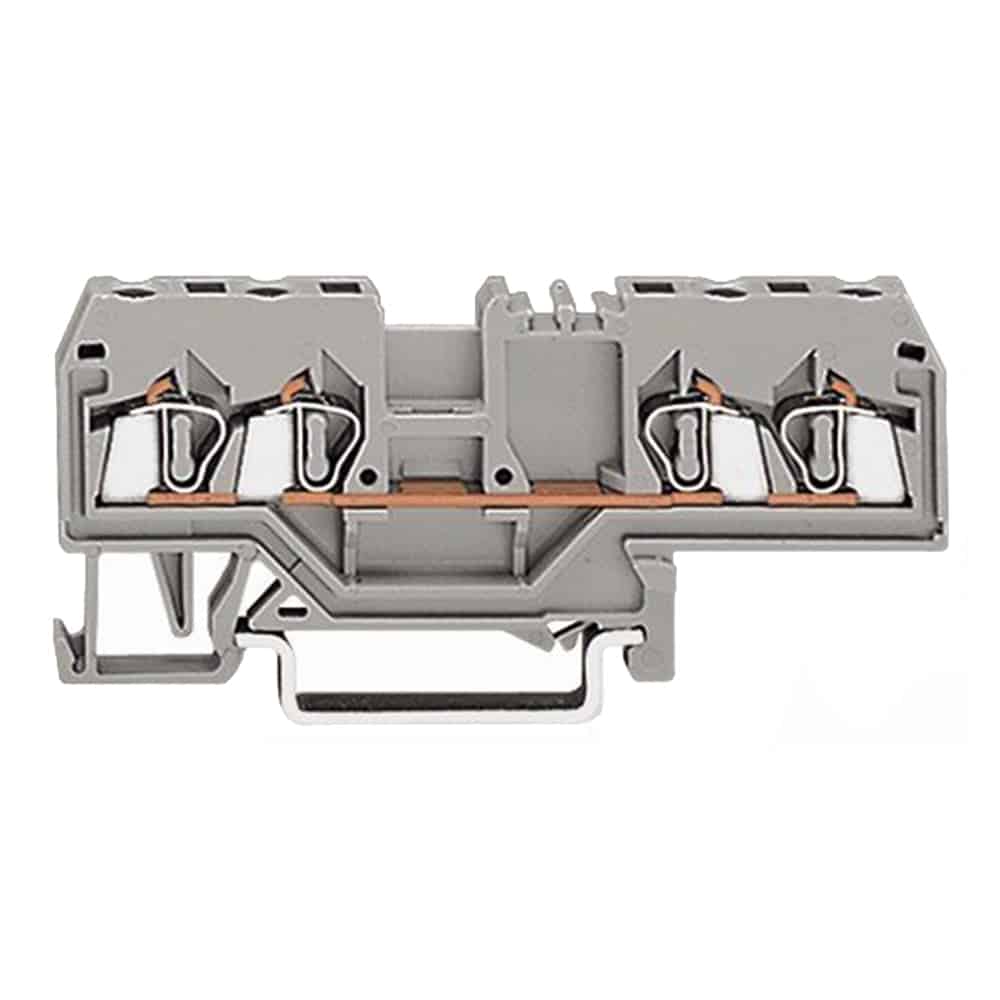

The WAGO 280-633 4-Conductor Terminal Block is a compact, DIN-rail mounted solution for streamlined electrical connections. Designed with WAGO’s CAGE CLAMP® technology, it allows fast, secure wire termination without tools. This gray terminal block supports up to four conductors and fits DIN rails 35 x 15 and 35 x 7.5 mm. It handles wire sizes from 12 to 28 AWG (0.08–2.5 mm²) and is rated for 800 V and 20 A under IEC standards.
Its 5 mm width and center marking make it ideal for tight control panels and organized layouts. The polyamide (PA66) housing is flame-retardant and built for industrial durability. With a stripping length of 8–9 mm and push-in spring termination, installation is quick and reliable. Whether you’re wiring automation systems or control cabinets, the 280-633 offers dependable performance and clean connectivity.
Quick Product Highlights
- 4-conductor feed-through terminal block
- CAGE CLAMP® tool-free wire connection
- Supports 12–28 AWG (0.08–2.5 mm²)
- Rated 800 V / 20 A (IEC)
- DIN-rail mountable (35 x 15 / 35 x 7.5 mm)
- Flame-retardant polyamide housing
- Compact 5 mm width with center marking
Get your WAGO 280-633 4-Conductor Terminal Block at Kinequip today.
