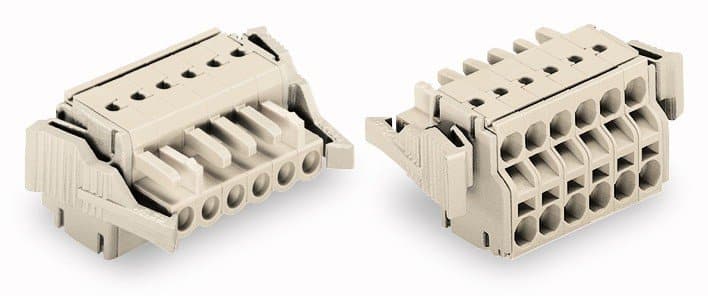

The WAGO 721-2106/037-000 2-Conductor Female Connector is a compact, 6-pole pluggable connector designed for fast and secure wiring in control systems. It features WAGO’s push-in CAGE CLAMP® technology, allowing tool-free termination of solid and ferruled conductors. Each pole supports two conductor entries, making it ideal for looping power or data buses without breaking the connection.
With a pin spacing of 5 mm and a light gray polyamide housing, this connector fits neatly into tight spaces while maintaining high performance. It includes lateral locking levers for secure mating and is 100% protected against mismating. The connector supports wire sizes from 24 to 12 AWG and includes a strip length guide for consistent preparation.
Rated for up to 320V and 16A per IEC standards, and up to 600V and 20A under UL 1977, it’s suitable for demanding industrial environments. The connector is codable and meets UL94 V0 flammability standards, ensuring safety and reliability in electrical installations.
Quick Product Highlights
- 6-pole, 2-conductor female connector
- Push-in CAGE CLAMP® terminals
- Supports 24–12 AWG wire sizes
- 100% protected against mismating
- Lateral locking levers for secure fit
- Rated up to 600V and 20A
