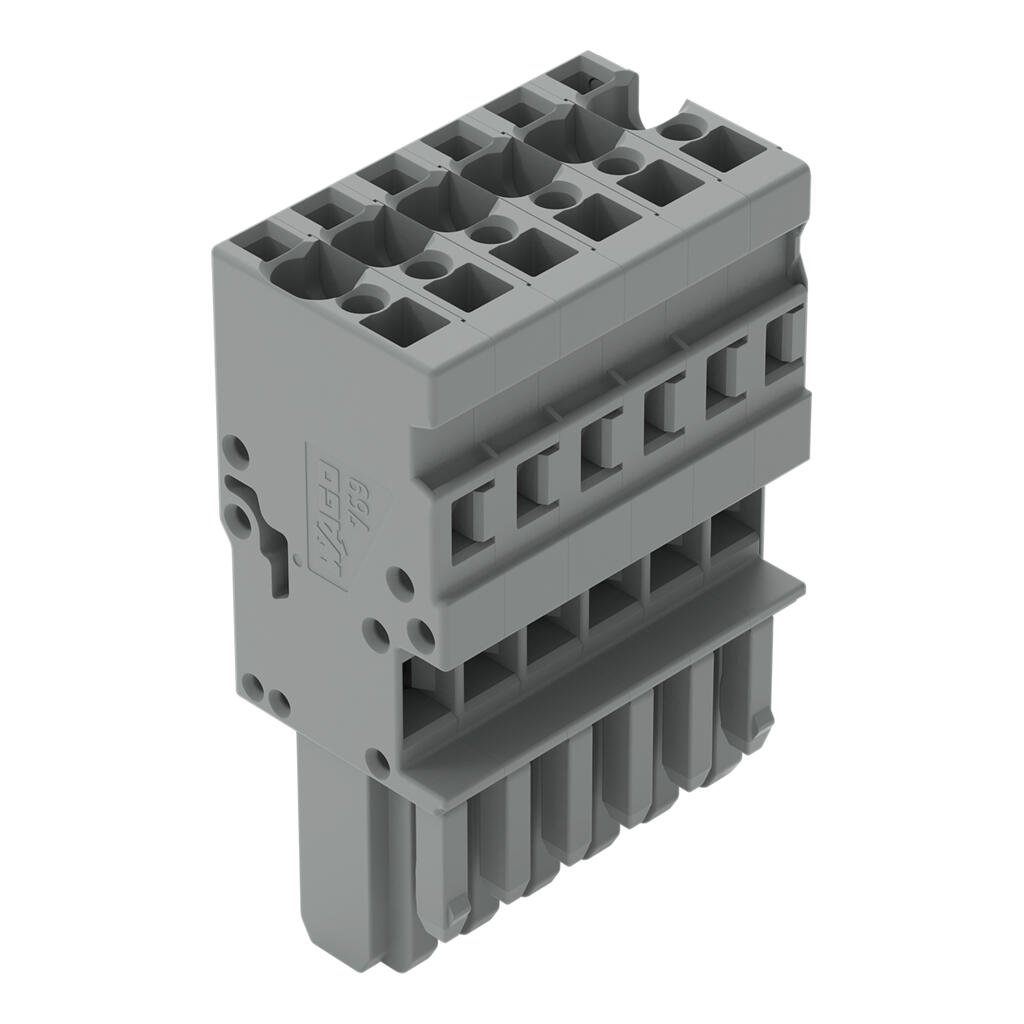

The WAGO 769-106 1-Conductor Female Plug is a compact and reliable connector designed for use in rail-mounted terminal block systems. Part of the X-COM® series, this plug features six poles and a 5 mm pin spacing, making it ideal for high-density wiring applications.
It supports conductor cross-sections up to 4 mm² and is compatible with wire sizes ranging from 0.08 mm² to 4 mm² (AWG 28 to AWG 12). The plug is equipped with WAGO’s CAGE CLAMP® spring pressure connection technology, which ensures secure, vibration-resistant contact without the need for tools.
Its gray polyamide housing is flame-retardant and built to withstand industrial environments. The plug is designed for free-hanging (in-line) mounting and includes a coding finger for keyed mating, helping prevent misconnection. With a rated current of 32 A and voltage capacity up to 500 V, it’s suitable for a wide range of control and power distribution tasks.
Quick Product Highlights
- 6-pole female plug with 5 mm pin spacing
- CAGE CLAMP® connection for tool-free wiring
- Supports 0.08–4 mm² conductors (AWG 28–12)
- Rated for 32 A and 500 V
- Flame-retardant gray polyamide housing
- Free-hanging (in-line) mounting with coding finger
Get your WAGO 769-106 1-Conductor Female Plug at Kinequip today.
