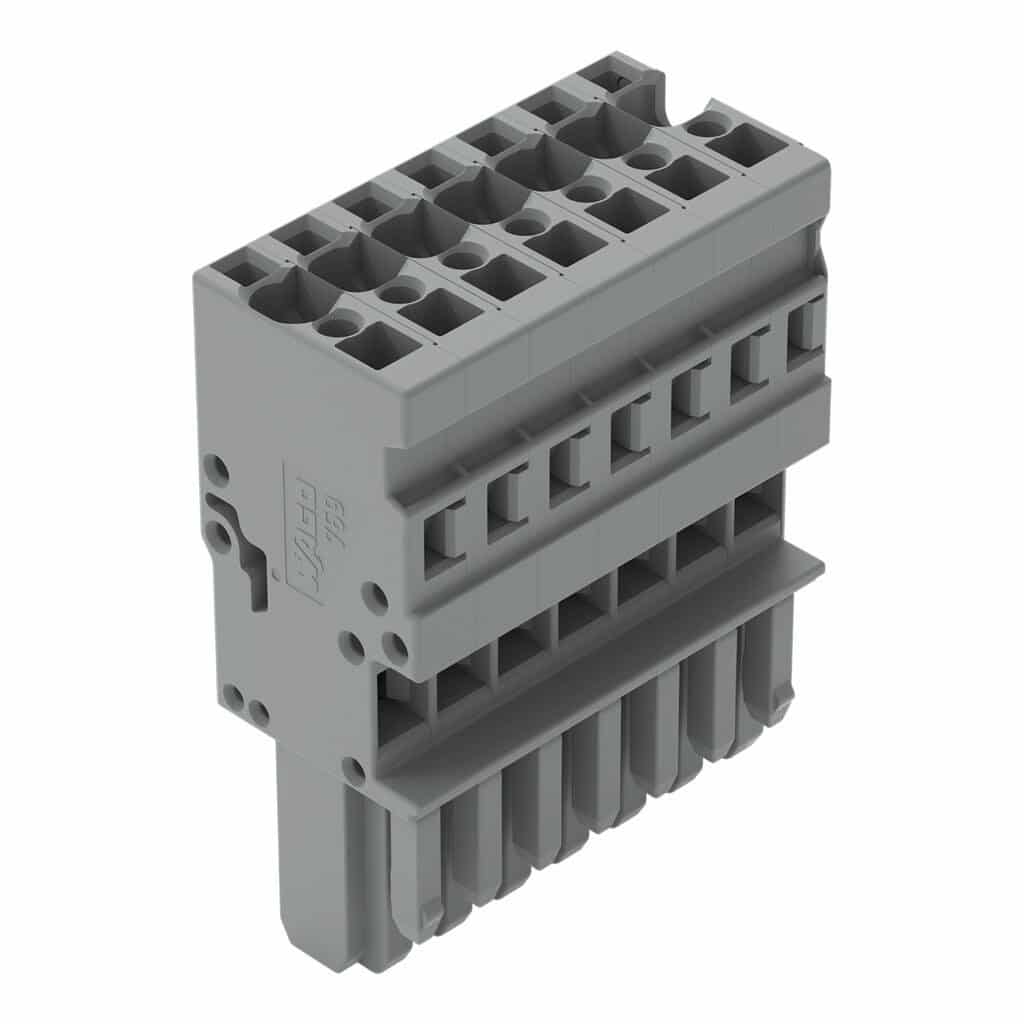

The WAGO 769-107 1-Conductor Female Connector is a 7-position plug designed for compact and reliable wiring. It features a 5 mm pin spacing and uses WAGO’s trusted CAGE CLAMP® technology to ensure secure, tool-free connections. This connector supports conductor sizes up to 4 mm² and is ideal for high-density applications in control panels and industrial systems.
Its free-hanging, in-line mounting style allows flexible installation, while the 180° wire entry simplifies cable routing. The connector includes a coding finger for keyed mating and is built with a durable gray polyamide housing. Tin-plated copper contacts provide excellent conductivity and long-term reliability.
Rated for up to 32 A and 500 V under IEC standards, the 769-107 performs well in demanding environments. It meets UL94 V-0 flammability standards and is RoHS3 compliant. The connector is part of WAGO’s X-COM® system, known for modularity and ease of use in rail-mounted terminal block setups.
Whether used in automation, machinery, or electrical distribution, this connector offers dependable performance and fast installation.
Quick Product Highlights
- 7-position female plug with 5 mm pitch
- CAGE CLAMP® technology for secure wiring
- Free-hanging, in-line mounting style
- Rated for 32 A / 500 V
- Supports up to 4 mm² conductors
Get your WAGO 769-107 1-Conductor Female Connector at Kinequip today.
