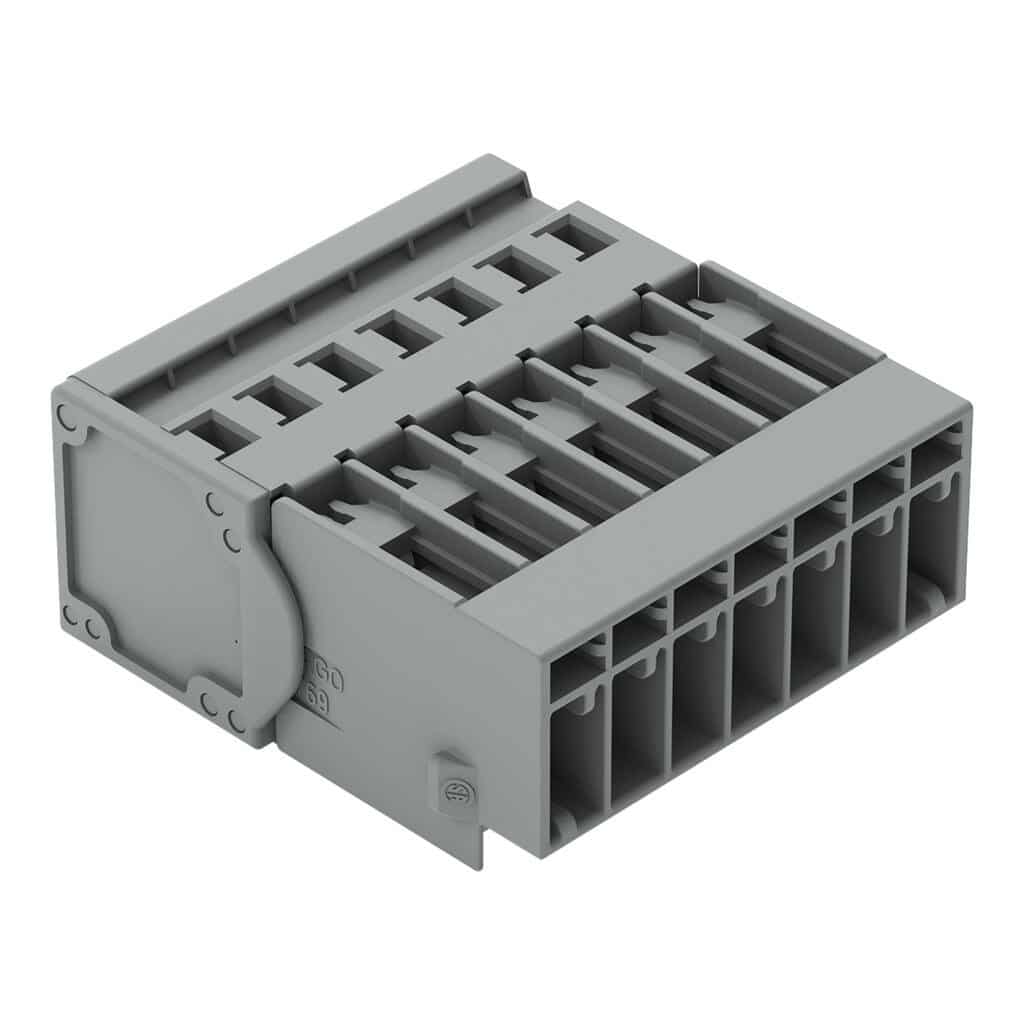

The WAGO 769-607 1-Conductor Male Connector is a 7-position plug designed for compact and secure wiring. It features a 5 mm pitch and supports conductor sizes from 0.08 mm² to 4 mm². With WAGO’s CAGE CLAMP® technology, it allows fast, tool-free wiring for solid and ferruled conductors.
This connector uses a free-hanging, in-line mounting style with a 180° wire entry, making it easy to install in tight spaces. It belongs to WAGO’s X-COM® series, known for modularity and secure connections in rail-mounted terminal block systems. The gray housing is made of durable polyamide (PA66), and the copper contacts ensure reliable conductivity.
Rated for up to 32 A and 500 V under IEC standards, the 769-607 performs well in demanding environments. It meets UL94 V-0 flammability standards and is RoHS compliant. The connector includes a locking ramp for secure mating and supports snap-in panel mounting for quick setup.
Whether used in control panels, automation systems, or industrial machinery, this male connector offers dependable performance and easy integration into modular wiring setups.
Quick Product Highlights
- 7-position male plug with 5 mm pitch
- CAGE CLAMP® technology for tool-free wiring
- Free-hanging, in-line mounting style
- Rated for 32 A / 500 V
- Supports 0.08–4 mm² conductor sizes
Get your WAGO 769-607 1-Conductor Male Connector at Kinequip today.
