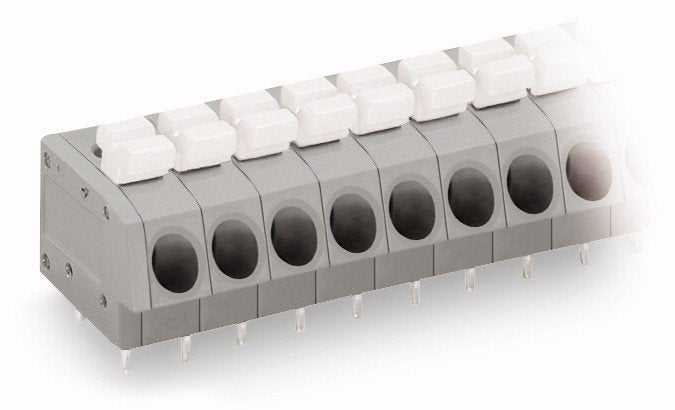

The WAGO 804-106 1-Conductor PCB Terminal Block is a 6-pole, through-hole connector designed for secure and efficient wire-to-board connections.
It features WAGO’s Push-in CAGE CLAMP® technology with push-button actuation, allowing fast, tool-free termination of solid and ferruled, fine-stranded conductors. Each terminal accommodates wire sizes from 0.25 mm² to 2.5 mm² (AWG 20–12), with a large entry that supports insulation diameters up to 4.2 mm.
With a 5 mm pin spacing and staggered solder pin layout, this terminal block ensures stable mounting and reliable electrical contact. It’s built from flame-retardant polyamide (PA66) and rated UL94 V0 for safety. The gray housing is compact—just 31.5 mm wide and 18.1 mm tall—making it ideal for space-constrained PCB designs. Rated for up to 24 A and 630 V (IEC), it’s suitable for a wide range of industrial and control applications.
Quick Product Highlights
- 6-pole PCB terminal block with 5 mm pitch
- Push-in CAGE CLAMP® with push-button actuation
- Supports 0.25–2.5 mm² conductors (AWG 20–12)
- Rated up to 24 A / 630 V (IEC)
- Flame-retardant PA66 housing (UL94 V0)
- THT mounting with staggered solder pins
Get your WAGO 804-106 1-Conductor PCB Terminal Block at Kinequip today.
