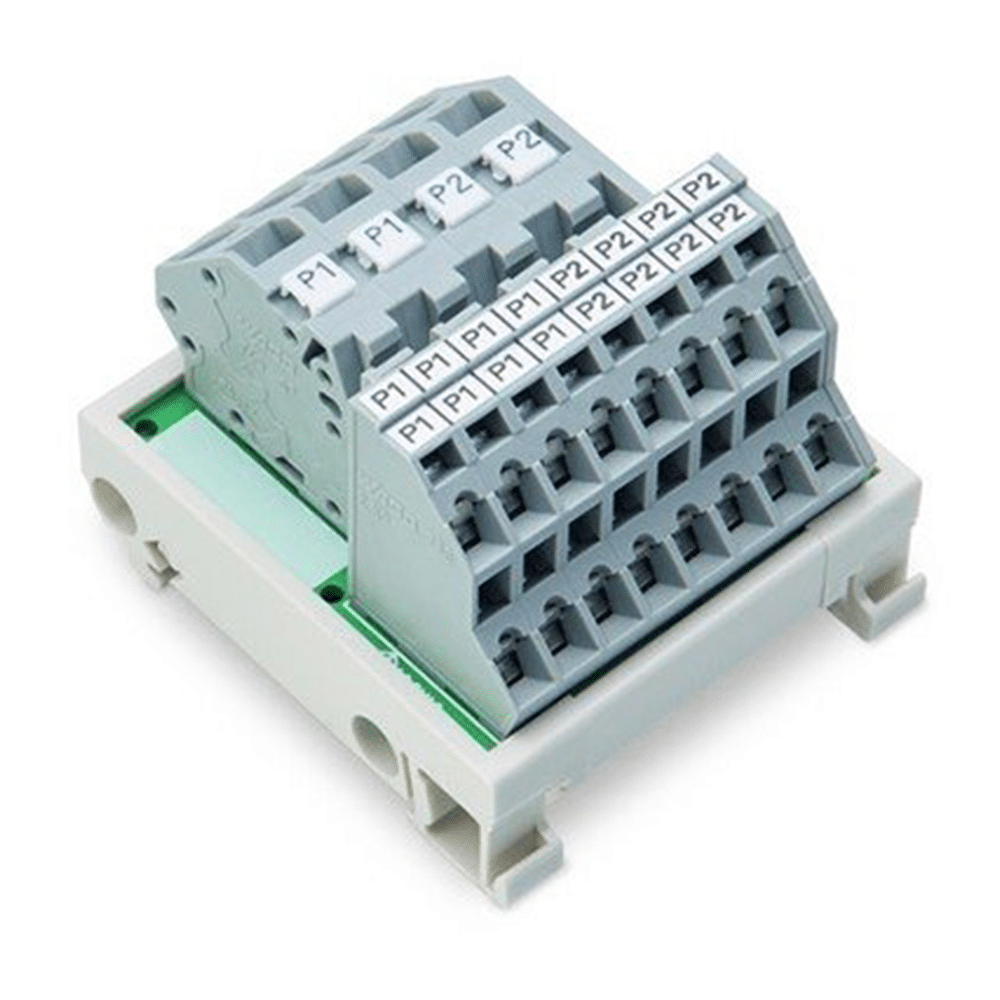

The WAGO 830-800/000-318 Potential Distribution Module is a compact and efficient solution for distributing electrical potentials in control cabinets and automation systems. This module supports two separate potentials, each with two input clamping points that accept conductor cross-sections up to 6 mm². It features 24 output clamping points per potential, designed for conductors up to 2.5 mm², allowing for organized and scalable wiring.
The module includes operating levers for easy handling and secure connections. Its gray housing is DIN-35 rail mountable, making installation straightforward in standard enclosures. With a 10A output capacity and CAGE CLAMP spring connections, it ensures reliable performance and vibration-resistant contact. This module is ideal for distributing power or signals across multiple devices while maintaining a clean and structured layout.
Engineered for flexibility and durability, the 830-800/000-318 is RoHS compliant and built to meet industrial standards. It’s a dependable choice for professionals needing a high-density distribution solution that simplifies wiring and improves system clarity.
Quick Product Highlights
- Two potentials with two input points each
- 24 output clamping points per potential
- Accepts up to 6 mm² input conductors
- DIN-35 rail mountable gray housing
- 10A output capacity with CAGE CLAMP connections
- RoHS compliant and vibration-resistant
Get your WAGO 830-800/000-318 Potential Distribution Module at Kinequip today.
