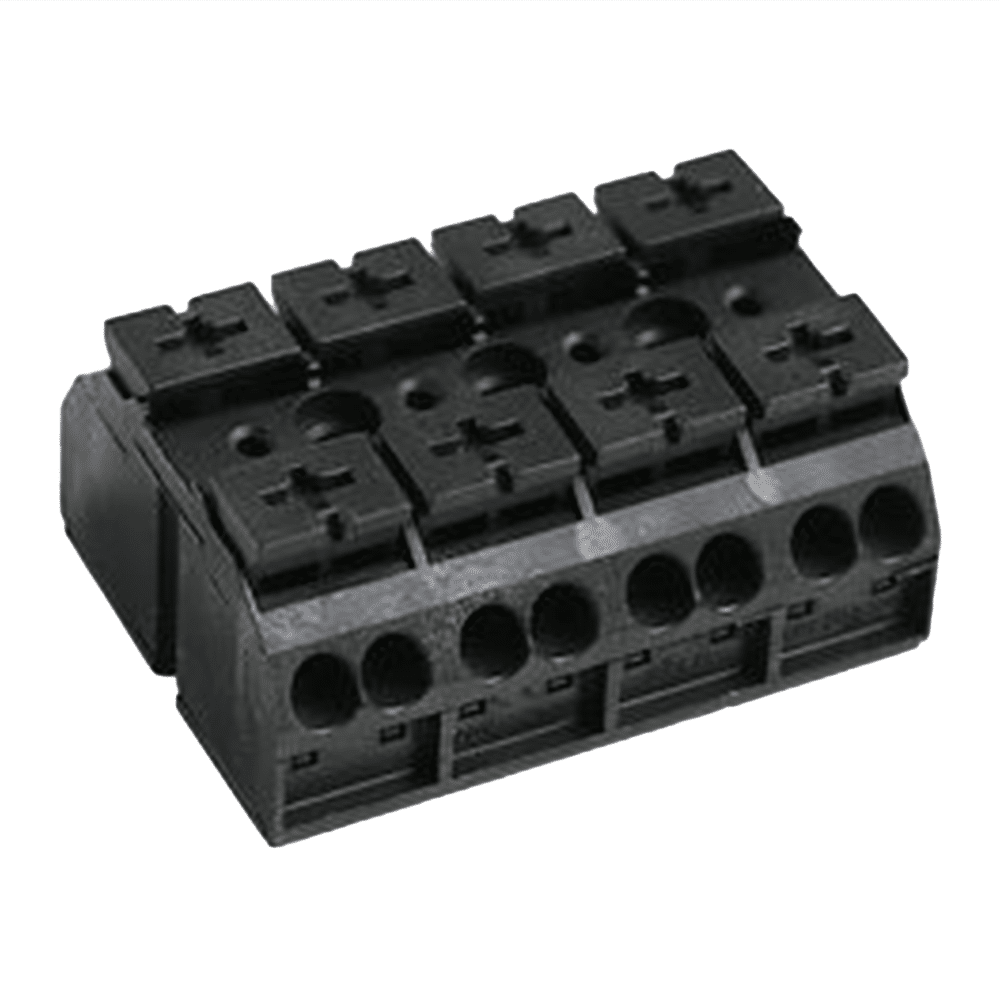

The WAGO 862-504 4-Conductor Chassis Terminal Strip is a compact, screw-mounted terminal block designed for secure and efficient field wiring. With four poles and sixteen total connection points, it supports copper conductors ranging from 0.5 to 4 mm² (20 to 12 AWG), including solid, stranded, and fine-stranded wires.
This terminal block uses WAGO’s Push-in CAGE CLAMP® technology for fast, tool-free wiring. It features a push-button actuation method and side-entry wiring, making installation straightforward even in tight spaces. The black polyamide housing is flame-retardant (UL94 V0) and built to withstand temperatures up to 120°C.
Rated for up to 600V and 20A, the 862-504 is suitable for industrial and commercial applications. It mounts using a 3 mm screw and nut or can be DIN-rail mounted with an optional adapter. The terminal strip does not include ground contact and is ideal for clean, isolated connections.
Quick Product Highlights
- 4-pole, 16 connection points
- Push-in CAGE CLAMP® wiring
- Supports 0.5–4 mm² copper conductors
- Rated for up to 600V, 20A
- Screw or DIN-rail mountable
Get your WAGO 862-504 4-Conductor Chassis Terminal Strip at Kinequip today.
