| Category |
Nipples |
| Description Class |
Female thread |
| Remark |
– |
| Connection |
G 1/4″ |
| Length |
38 mm |
| Diameter |
25.4 mm |
| Hexagon |
22 mm |
| Rec. torque (Nm) |
40-50 Nm |
| Rec. seal. method |
CMS* |

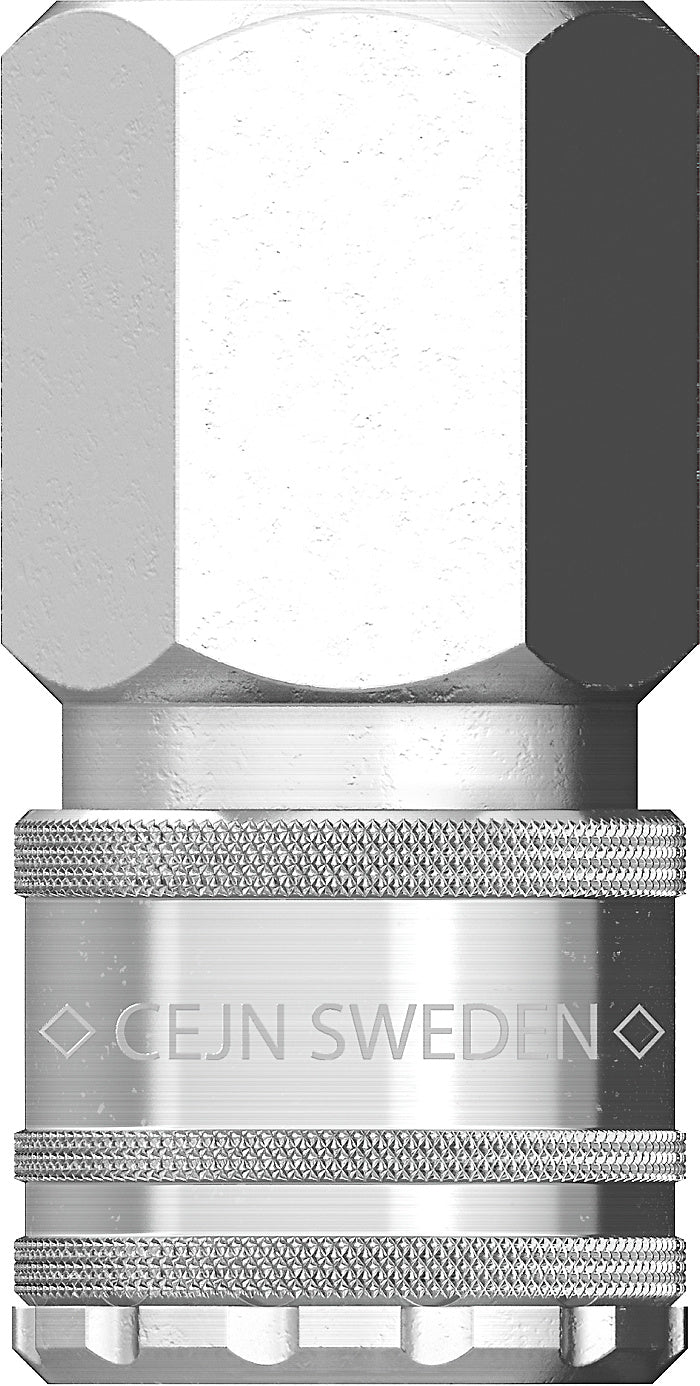

Series 117 is a sister coupling to Series 115 and is used alongside it in applications where the systems must not, under any circumstances, be interconnected. The series offer the same performance and qualities, but cannot be connected with one another, which makes them an unbeatable combination for rescue tools, etc. All exposed components are made of zinc-plated steel. The safety lock comes as standard and it adds an extra layer of safety by eliminating any risks of accidental disconnections. Plastic dust caps are standard on both coupling and nipple.
| Nominal flow diameter |
2.5 mm (0.1″) |
| Flow capacity |
6.0 l/min (1.3 GPM UK) |
| Max. working pressure |
100 MPa |
| Min. burst pressure |
260 MPa |
| Temperature range |
-30°C — +100°C (-22°F — +212°F) |
| Material coupling |
Hardened, zinc chromate plated steel |
| Material nipple |
Hardened, zinc chromate plated steel |
| Material seal |
Nitrile (NBR) other sealing material on request |
