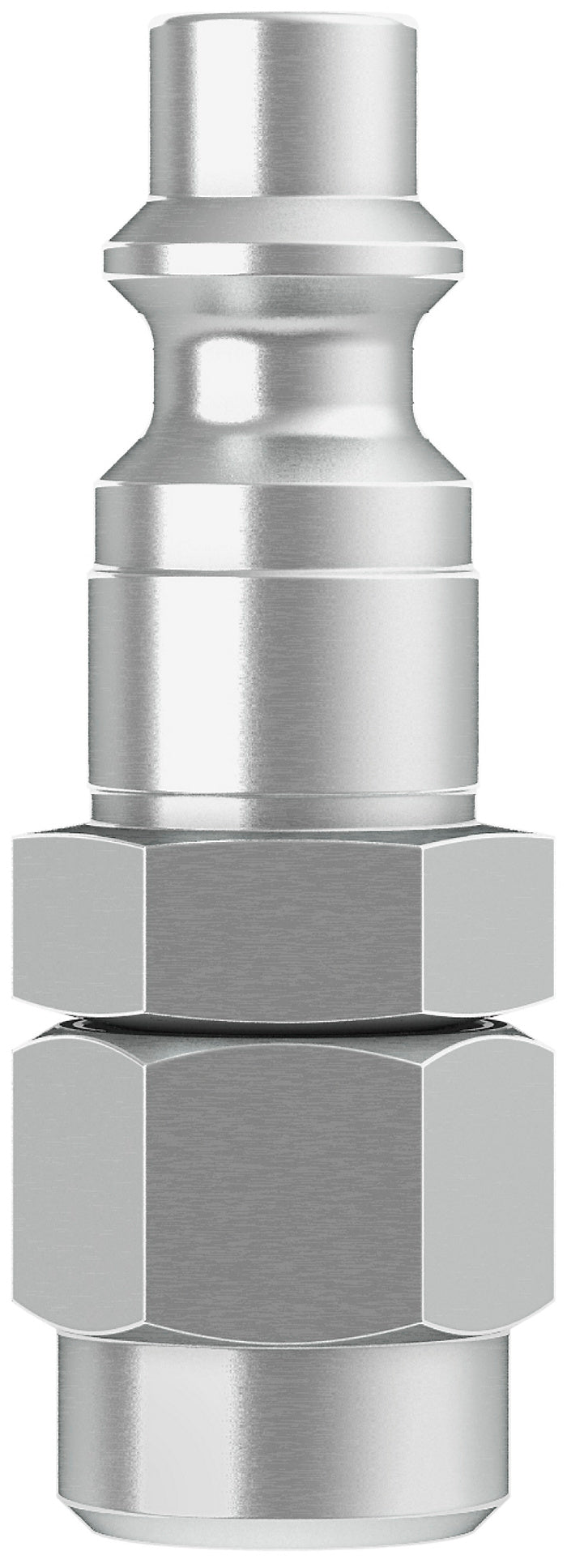

Cejn 10-300-5003 Series 300 DN5.5 eSafe Hose Connection Nipples 8 mm 5/16″, 16 Bar

SKU: 10-300-5003
Cejn 10-300-5003 Series 300 DN5.5 eSafe Hose Connection Nipples 8 mm 5/16″, 16 Bar

Series 300 eSafe couplings offer high flow and require only a low connection force, which ensures a safe working environment. eSafe is a one hand operated safety coupling that vents before disconnection eliminating the risk of hose whip. Male threads on the couplings and nipples feature pre-applied thread sealant. A fully automatic operation ensures quick and easy handling. eSafe complies with ISO Standard 4414.

Category
Nipples

Description Class
Hose connection

Connection
8 mm (5/16″)

Nominal flow diameter
5.5 mm (0.2″)

Air flow
1050 l/min (37.1 CFM)

Max. working pressure
16 bar (232 PSI)

Min. burst pressure
140 bar (2030 PSI)

Connection force
86 N

Temperature range
-20°C — +100°C (-4°F — +212°F)

Material coupling
Zinc-plated steel/brass

Material nipple
Hardened zinc-plated steel

Standards
ARO 210 Standard, 5.5 mm

Markets
Benelux, North America, Switzerland
