| Category |
Couplings |
| Description Class |
Female thread |
| Connection |
3/4″ NPT |

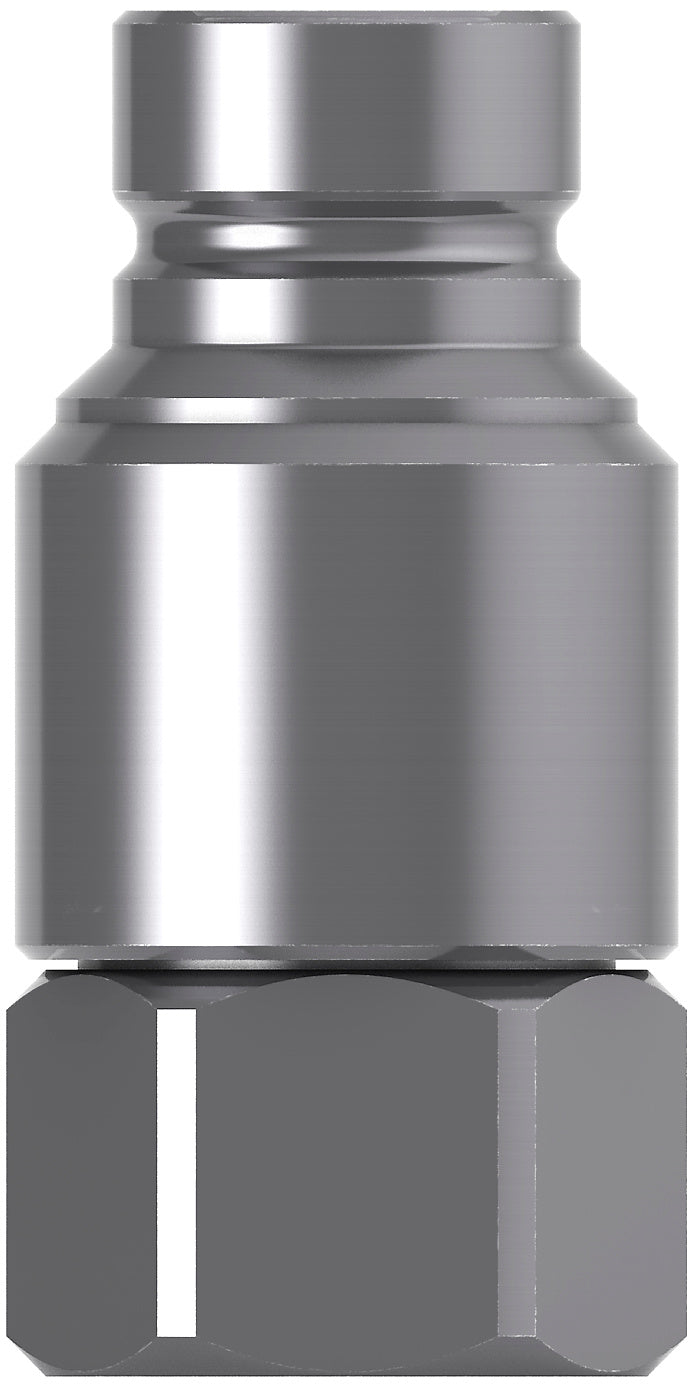

TLX is a Flat-Face twist lock coupling for the toughest applications in the construction and demolition segment. This super-duty quick connect coupling is designed to work with the highest surge flows and the toughest pressure impulses. TLX is made from high alloy steels with Zinc-Nickel surface treatment for a long life in the harshest conditions. The Series is available in sizes from ½” to 1 ½” to cover most applications.- The couplings and nipples are also available in 4 other sizes: ½” (Series 507), 1” (Series 707), 1 ¼” (Series 807) and 1 ½” (Series 907)
| Flow rate |
169 l/min (37.2 GPM) @ 3bar ΔP ** |
| Temperature range |
-30°C — +100°C (-22°F — +212°F) |
| Material coupling |
Steel (Zinc-Nickel) |
| Material nipple |
Steel (Zinc-Nickel) |
| Material seal |
Nitrile (NBR) |
| Max. working pressure connected |
420 bar (6091 PSI) |
| Max. working pressure disconnected |
400 bar (5801 PSI) |
| Min. burst pressure connected |
1680 bar (24366 PSI) |
| Min. burst pressure disconnected |
1000 bar (14503 PSI) |
| Connectability |
Connection with residual pressure only limited by operator strength |
| Disconnection under pressure |
Disconnection with residual pressure in the system is allowed |
