Features & Specifications:

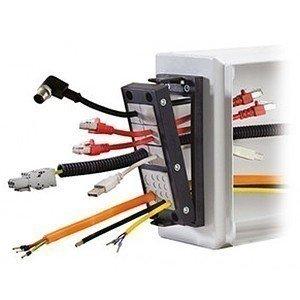

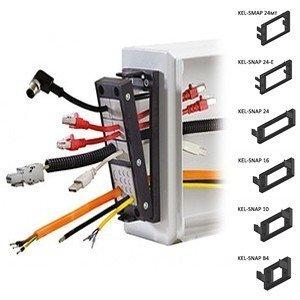

– Mounting frames offer quick mounting of a wide range of KEL Frames when needed.
– No need to screw and unscrew Kel-Frames for maintenance/etc when disassembled
– KEL-Snap are ideal for enclosures that are maintenance intensive or for a later install date
– Drilling template identical to KEL frames (except KEL-SNAP-B4)
– Easy and quick attachment of existing or previous assembled KEL frames
– Control panels come equipped with the KEL-Snap frame for a simple snap-in when routing cables and conduits
Option (upon request): 46mm cut-out can be chosen instead of 36mm cut-out
Options: prefabricated multi-pole connectors can be used
Material: Polyamide, color/black RAL9005
Flame class: UL94-V0, self-extinguishing
Temperature: -40 – 140 °C (static)
Properties: Halogen free, Silicone free
Mounting type: Screwing
No. of screw holes: 4
Diam. of screw holes:Ø 5.5 millimeter
Mounting height: 38 millimeter
Length: 81 millimeter
Width: 64 millimeter
Height: 38 millimeter
Cut-out Length: 38 millimeter
Cut-out Width: 46 millimeter
Note: For questions and full compatible product data, contact our sales support specialist.
Compatible Products: KEL-10, KEl-16, KEL-24, KEl-B, KEL-24E, KEL-24-MT, KEL-U-24, KEl-U-16, KEl-U-10, KEL-U-B, KEL-QUICK-24, KEL-QUICK-16, KEL-QUICK-B, KEL-FG
